MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
MACOM recommends using a 50-ohm microstrip line for impedance matching. The device's input and output impedances are 50 ohms, and the recommended PCB layout should maintain a 50-ohm impedance throughout the signal path.
The recommended operating temperature range for the SW-239TR is -40°C to +85°C. However, it's essential to ensure proper thermal management to maintain a junction temperature below 150°C for reliable operation.
MACOM recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines to protect the device from electrostatic discharge. A minimum of 2 kV HBM and 100 V MM protection is recommended.
MACOM recommends a power-up sequence of Vcc, followed by Vee, and then the RF input signal. A power-down sequence in the reverse order is recommended to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SW-239TR Overview

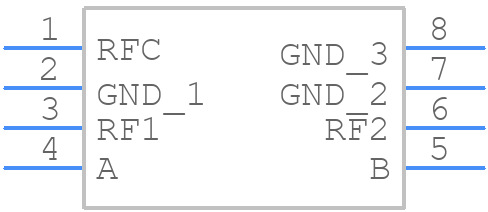

Use the download button to access the SW-239TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SW-23,
or try a keyword search, such as RF/Microwave Switches
