SX1211I084TRT - SEMTECH

Description: IC, TRANSCIEVER, RF, ISM BAND, 863MHZ

Download SX1211I084TRT Model

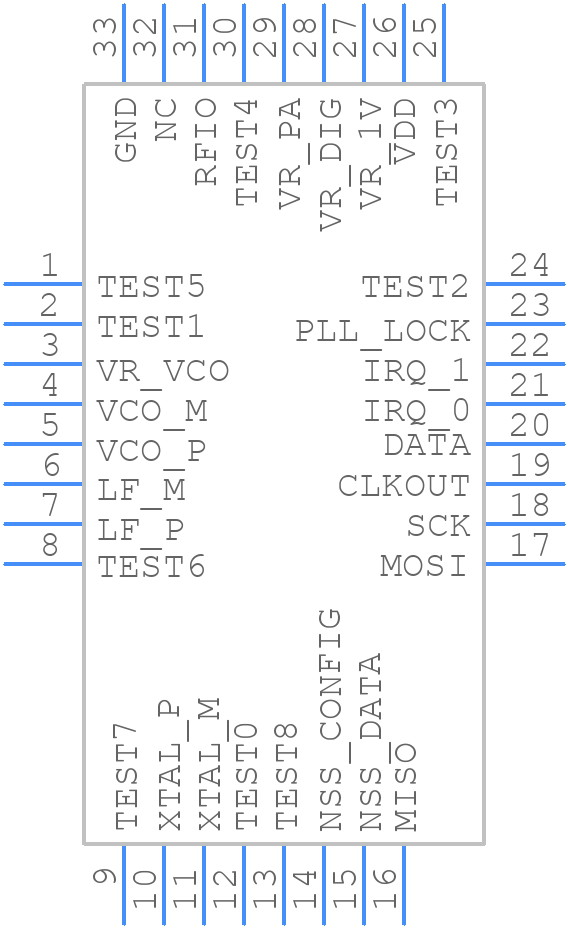

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SX1211I084TRT - SEMTECH PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SX1255IWLTRT-1
click to zoom
3D Models
SX1211I084TRT - SEMTECH  - 3D model - Quad Flat No-Lead - SX1255IWLTRT-1
click to zoom

SX1211I084TRT Details

  • Manufacturer Part Number:

    SX1211I084TRT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, 0.50 MM PITCH, ROHS COMPLIANT, TQFN-32

  • Pin Count:

    32

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A991.B.4.B

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    7.67

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

SX1211I084TRT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance matching to minimize signal reflections.
  • Use the lowest possible frequency and output power settings for your application. Enable the low-power mode (LPM) and use the automatic power control (APC) feature to reduce power consumption.
  • The SX1211I084TRT can operate from -40°C to +85°C, but the optimal operating temperature range is between 0°C to 70°C for best performance and reliability.
  • Use a spectrum analyzer to measure the RF signal quality and check for any signs of interference or harmonics. Verify that the antenna is properly matched and the PCB layout is correct.
  • Yes, but ensure that the PA is designed for the same frequency band and has a compatible output power rating. Also, follow the recommended PCB layout and impedance matching guidelines.
