SX1236IMLTRT - SEMTECH

Description: RF Transceiver FSK/GFSK/GMSK/MSK/OOK 2.5V/3.3V 28-Pin QFN EP T/R

Download SX1236IMLTRT Model

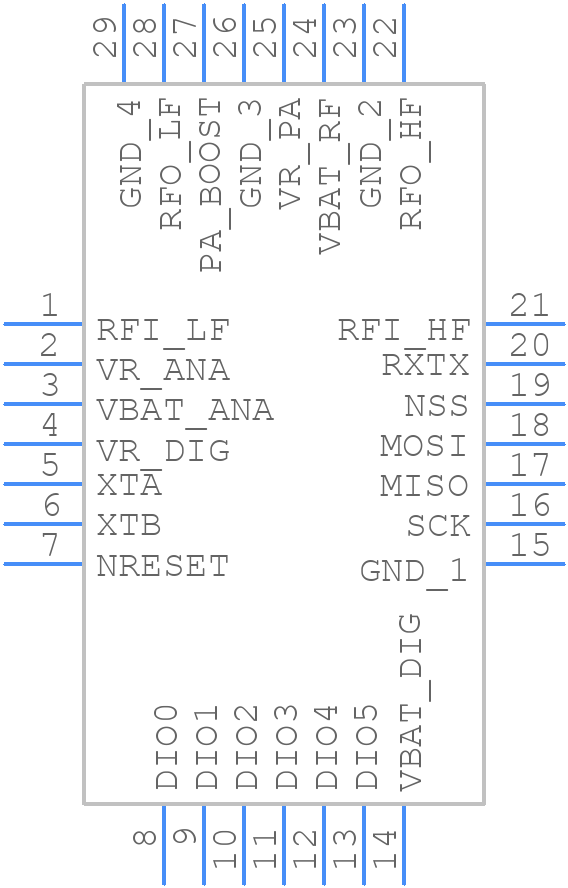

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SX1236IMLTRT - SEMTECH PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-lead QFN_22
click to zoom
3D Models
SX1236IMLTRT - SEMTECH  - 3D model - Quad Flat No-Lead - 28-lead QFN_22
click to zoom

SX1236IMLTRT Details

  • Manufacturer Part Number:

    SX1236IMLTRT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    6 X 6 MM, HALOGEN FREE AND ROHS COMPLIANT, QFN-28

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    6.18

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    MANCHESTER ENCODER/DECODER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

SX1236IMLTRT Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the SX1236IMLTRT involves keeping the RF traces as short as possible, using a solid ground plane, and placing the module near the antenna. A 4-layer PCB with a dedicated ground plane is recommended. The datasheet provides a reference layout, but it's essential to consult with a PCB design expert to ensure optimal performance.
  • Optimizing the antenna design for the SX1236IMLTRT involves selecting the right antenna type, size, and placement. A quarter-wave monopole or a dipole antenna is recommended. The antenna should be placed at least 10mm away from the module, and its impedance should be matched to the module's output impedance (50 ohms). Consult with an antenna design expert or use simulation tools to optimize the antenna design.
  • The maximum transmit power of the SX1236IMLTRT is +20 dBm (100 mW). However, the actual transmit power can be adjusted using the PA_BOOST pin or through software configuration. It's essential to ensure that the transmit power complies with regional regulations and does not exceed the maximum allowed power density.
  • Implementing frequency hopping with the SX1236IMLTRT involves using the module's built-in frequency synthesizer and configuring the frequency hopping sequence through software. The module supports up to 16 frequency channels, and the frequency hopping sequence can be programmed using the SPI interface. Consult the datasheet and application notes for more information.
  • The recommended crystal oscillator frequency for the SX1236IMLTRT is 26 MHz. This frequency provides the best trade-off between accuracy and power consumption. However, the module can operate with other crystal frequencies, such as 24 MHz or 32 kHz, depending on the application requirements.
