A good PCB layout for the SX9306IULTRT involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable communication, make sure to use a compatible communication protocol, such as SPI or I2C, and follow the recommended pin connections and signal timing. Also, ensure that the microcontroller and the SX9306IULTRT are properly powered and decoupled.
The SX9306IULTRT has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including industrial and automotive systems.
To troubleshoot issues with the SX9306IULTRT, start by checking the power supply and decoupling, then verify the communication protocol and signal timing. Use a logic analyzer or oscilloscope to debug the signals and identify any issues. Consult the datasheet and application notes for specific troubleshooting guidelines.
Yes, the SX9306IULTRT is suitable for use in battery-powered devices due to its low power consumption. However, ensure that the device is properly powered down when not in use to minimize power consumption and extend battery life.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SX9306IULTRT Overview

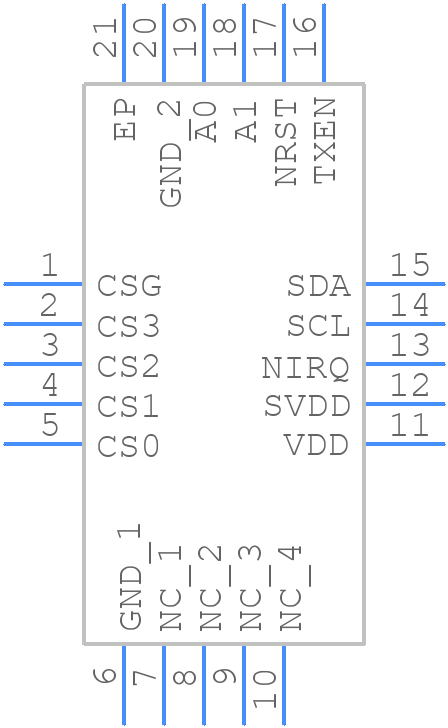

Use the download button to access the SX9306IULTRT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SX930,
or try a keyword search, such as Proximity Sensors
