SXBP-27R5+ - Mini-Circuits

Description: Signal Conditioning Lumped LC Band Pass Filter, 24 - 31 MHz, 50?

Download SXBP-27R5+ Model

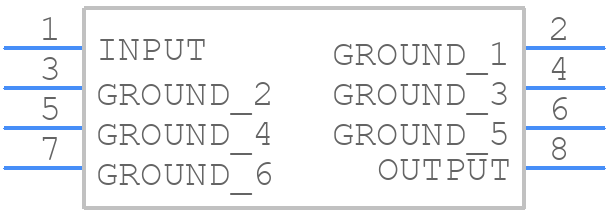

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SXBP-27R5+ - Mini-Circuits PCB footprint - Other - Other - SXBP-27R5+-2
click to zoom
3D Models
SXBP-27R5+ - Mini-Circuits  - 3D model - Other - SXBP-27R5+-2
click to zoom

SXBP-27R5+ Details

  • Manufacturer Part Number:

    SXBP-27R5+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.79

  • Average Input Power:

    0.25 W

  • Center or Cutoff Frequency (fo/fc):

    27.5 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    6.86 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2.5 dB

  • Length:

    18.8 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.7

  • Width:

    11.18 mm

SXBP-27R5+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency applications.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a general impedance matching guide in their application notes, but it's recommended to consult with an RF engineer or use simulation software like ADS or AWR to optimize the matching network for your specific application.
  • While the datasheet doesn't specify a maximum power handling, Mini-Circuits recommends a maximum input power of +23 dBm (200 mW) to ensure reliable operation and prevent damage to the device. Exceeding this power limit may result in reduced performance, overheating, or even device failure.
  • The SXBP-27R5+ is rated for operation up to +85°C, but its performance may degrade at higher temperatures. If your application requires operation above +85°C, it's recommended to consult with Mini-Circuits or consider using a different component specifically designed for high-temperature applications.
  • Common issues with the SXBP-27R5+ can often be attributed to improper PCB layout, poor impedance matching, or incorrect soldering. Consult the datasheet and application notes for troubleshooting guidelines, and consider using a vector network analyzer (VNA) to measure the device's S-parameters and identify the root cause of the issue.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SXBP-27R5+ Overview

Use the download button to access the SXBP-27R5+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SXBP-, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
