Part Image

SXLP-3+ - Mini-Circuits

Description: ic

Download SXLP-3+ Model

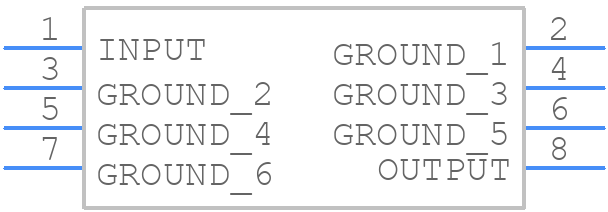

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SXLP-3+ - Mini-Circuits PCB footprint - Other - Other - SXLP-3+-2
click to zoom
3D Models
SXLP-3+ - Mini-Circuits  - 3D model - Other - SXLP-3+-2
click to zoom

SXLP-3+ Details

  • Manufacturer Part Number:

    SXLP-3+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.1

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    3.5 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    6.86 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.5 dB

  • Length:

    18.8 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 13 INCH

  • VSWR:

    1.6

  • Width:

    11.18 mm

SXLP-3+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes (AN-60-014) and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The SXLP-3+ is designed for 50Ω input and output impedance. However, the optimal impedance may vary depending on the specific application and frequency range. It's recommended to consult the datasheet and application notes for guidance on impedance matching and to perform simulations or measurements to determine the best impedance for your specific use case.
  • The SXLP-3+ can handle up to 1W of input power. Exceeding this limit may cause damage to the device or affect its performance. It's essential to ensure that the input power is within the recommended range to maintain the device's reliability and performance.
  • To minimize the noise figure of the SXLP-3+, ensure that the input signal is properly matched to the device's input impedance, and the output is properly terminated. Additionally, use a low-noise voltage regulator and decouple the power supply lines to reduce noise injection. Finally, consider using a noise-reducing component, such as a ferrite bead, in the power supply line.
  • The SXLP-3+ is specified to operate from -40°C to 85°C. However, the device's performance may vary across this temperature range. It's recommended to consult the datasheet and application notes for guidance on temperature-related performance characteristics and to ensure that the device is operated within its recommended temperature range.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SXLP-3+ Overview

Use the download button to access the SXLP-3+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SXLP-, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
