SY100ELT22LZG-TR - Microchip

Description: Translation - Voltage Levels 3.3V Dual TTL-to-Differential PECL Translator

Download SY100ELT22LZG-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

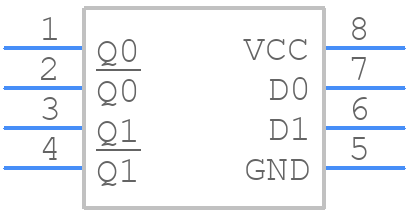

Symbol
SY100ELT22LZG-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
SY100ELT22LZG-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SOICN-8LD-PL-1_2023
click to zoom
3D Models
SY100ELT22LZG-TR - Microchip - 3D model - Small Outline Packages - SOICN-8LD-PL-1_2023
click to zoom

SY100ELT22LZG-TR Details

  • Manufacturer Part Number:

    SY100ELT22LZG-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Delay-Max:

    0.6 ns

  • Interface IC Type:

    TTL/CMOS TO PECL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.93 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.73 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Max:

    3.8 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.94 mm

SY100ELT22LZG-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the SY100ELT22LZG-TR involves keeping the input and output traces short and direct, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Proper power supply decoupling is crucial for the SY100ELT22LZG-TR. Use a low-ESR capacitor (e.g., 0.1 μF) close to the VCC pin, and consider adding a 10 μF capacitor in parallel for additional filtering. Ensure the power supply is stable and within the recommended operating range.
  • The SY100ELT22LZG-TR has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device will be operating in high-temperature environments or under high-power conditions.
  • When troubleshooting the SY100ELT22LZG-TR, start by verifying the power supply and clock signals. Check for proper termination and signal integrity. Use an oscilloscope to inspect the input and output signals, and consult the datasheet and application notes for guidance on specific issues.
  • Yes, the SY100ELT22LZG-TR is a high-frequency device and requires attention to EMI/EMC considerations. Use shielding, filtering, and proper grounding to minimize emissions and susceptibility. Follow good PCB design practices, and consider using EMI-absorbing materials or shielding cans if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SY100ELT22LZG-TR Overview

Use the download button to access the SY100ELT22LZG-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SY100, or try a keyword search, such as Level Translators

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
