- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SY88813VKG
- Part Number SY88813VKG
- Manufacturer Microchip
- Pin Count 10
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 10-MSOP MM
- Released Date Jan 28, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SY88813VKG Details
-
Manufacturer Part Number:
SY88813VKG
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
3 MM, LEAD FREE, MSOP-10
-
Pin Count:
10
-
Manufacturer Package Code:
MSOP-10
-
Country Of Origin:
Malaysia
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Microchip Technology Inc
-
YTEOL:
3
-
Applications:
SDH; SONET
SY88813VKG Frequently Asked Questions (FAQs)
-
Microchip provides a recommended PCB layout in the datasheet, but it's essential to follow good high-speed design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the clock and data signals.
-
To ensure reliable operation, follow the recommended operating conditions, including voltage and temperature ranges. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable temperature.
-
The SY88813VKG has a specified jitter tolerance, but it's essential to consider the system-level jitter budget, including the clock source, transmission lines, and receiver jitter tolerance. Ensure that the total jitter is within the specified limits to maintain reliable data transmission.
-
To optimize power consumption, use the device's power-down modes, adjust the clock frequency, and optimize the supply voltage. Additionally, consider using a low-power clock source and minimizing the number of active channels.
-
Follow good signal integrity practices, such as using series termination, parallel termination, or AC coupling, depending on the specific application. Ensure that the termination scheme is compatible with the device's output impedance and the transmission line characteristics.
Trust Checks
Community Provided
System Verified
Community Approved
SY88813VKG Overview

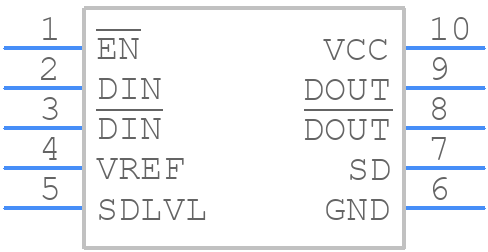

Use the download button to access the SY88813VKG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SY888,
or try a keyword search, such as ATM/SONET/SDH ICs
