SY89313VMG-TR - Microchip

Description: Clock Drivers & Distribution 3.3V/5V Ultrasmall Divide-by-4 Clock Generator

Download SY89313VMG-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

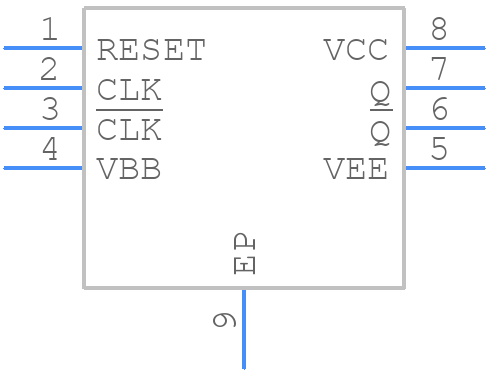

Symbol
SY89313VMG-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
SY89313VMG-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - MLF-8
click to zoom
3D Models
SY89313VMG-TR - Microchip - 3D model - Small Outline No-lead - MLF-8
click to zoom

SY89313VMG-TR Details

  • Manufacturer Part Number:

    SY89313VMG-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 2 MM, LEAD FREE, MLF-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    VDFN-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Additional Feature:

    IT ALSO REQUIRES 5V SUPPLY

  • Family:

    89313

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    0.46 ns

  • Seated Height-Max:

    0.9754 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    2 mm

  • fmax-Min:

    4000 MHz

SY89313VMG-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the differential pairs.
  • To ensure signal integrity, use controlled impedance traces, minimize vias and stubs, and use signal shielding. Also, consider using simulation tools to analyze signal reflections and crosstalk.
  • The maximum cable length depends on the specific application and the type of cable used. As a general guideline, the SY89313VMG-TR can support cable lengths up to 10 meters at 10 Gbps. However, it's recommended to consult the datasheet and perform signal integrity analysis for specific use cases.
  • The SY89313VMG-TR is a programmable device, and the data rate can be configured through the SPI interface. Refer to the datasheet and the device's programming guide for specific instructions on how to configure the device for different data rates.
  • The power consumption of the SY89313VMG-TR varies depending on the operating mode and data rate. According to the datasheet, the typical power consumption is around 350 mW at 10 Gbps. To optimize power consumption, consider using the device's power-down modes, reducing the clock frequency, and optimizing the PCB design for minimal power loss.
