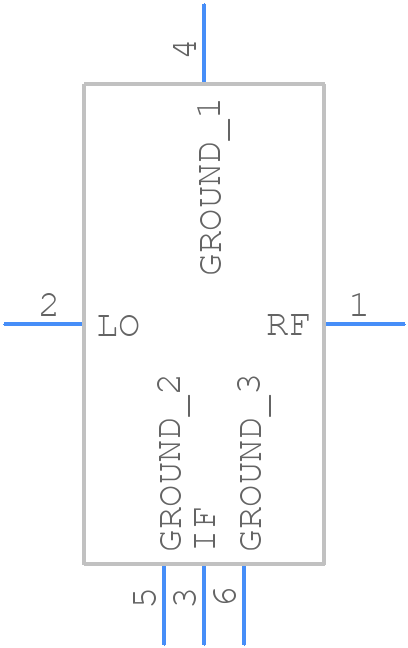

SYM-11+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SYM-11+ - Mini-Circuits PCB footprint - Other - Other - TTT167_2022
click to zoom
3D Models
SYM-11+ - Mini-Circuits - 3D model - Other - TTT167_2022
click to zoom

SYM-11+ Details

  • Manufacturer Part Number:

    SYM-11+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.49

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    10.5 dB

  • Input Power-Max (CW):

    17 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC6/8,.37X.5,175

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD OVER NICKEL

  • VSWR-Max:

    3.26

SYM-11+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • To achieve the best possible isolation, ensure that the device is properly terminated, and the PCB layout is optimized for isolation. Additionally, using a good quality PCB material with low dielectric loss and proper shielding can help improve isolation.
  • The maximum power handling capability of the SYM-11+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the device can handle up to 1W of continuous power. It's essential to derate the power handling capability based on the operating frequency and temperature.
  • No, it's not recommended to use the SYM-11+ as a 3-port device by connecting the two output ports together. This can cause impedance mismatch, affect the device's performance, and potentially lead to damage. The SYM-11+ is designed to operate as a 2-port device.
  • The operating temperature range of the SYM-11+ is -40°C to +85°C. However, the device's performance may degrade at extreme temperatures, and it's essential to consider the temperature coefficient of the device when designing the system.
