SYM-25DHW+ - Mini-Circuits

Description: RF Mixer Level 17, SMT Triple Balanced Mixer, RF/LO Freq 80 - 2500 MHz

Download SYM-25DHW+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

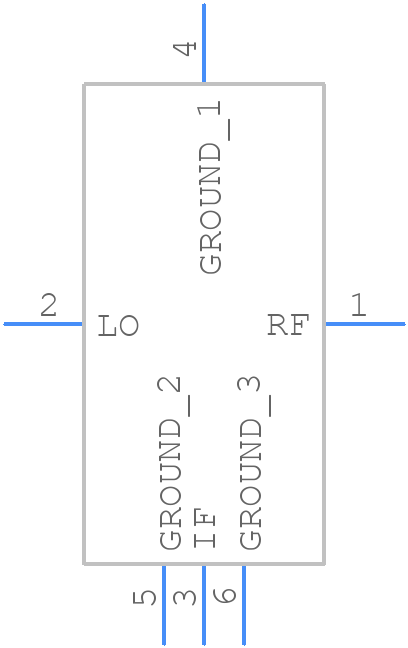

SYM-25DHW+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SYM-25DHW+ - Mini-Circuits PCB footprint - Other - Other - SYM-25DHW+-1
click to zoom
3D Models
SYM-25DHW+ - Mini-Circuits - 3D model - Other - SYM-25DHW+-1
click to zoom

SYM-25DHW+ Details

  • Manufacturer Part Number:

    SYM-25DHW+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    9 dB

  • Input Power-Max (CW):

    23 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    80 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC6/8,.37X.5,175

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD OVER NICKEL

  • VSWR-Max:

    3.13

SYM-25DHW+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is essential for optimal performance. It is recommended to use a solid ground plane on the PCB, and to connect the shield of the SYM-25DHW+ to the ground plane using multiple vias. Additionally, keep the signal traces as short as possible and use a 50-ohm impedance-controlled layout.
  • The SYM-25DHW+ requires a bias voltage of +5V to +12V. Ensure that the bias voltage is well-regulated and noise-free. A decoupling capacitor (e.g., 100nF) should be placed close to the bias pin to filter out any noise. Additionally, ensure that the bias current is limited to 100mA or less.
  • The SYM-25DHW+ is rated for operation from -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.
  • While the SYM-25DHW+ is primarily designed for linear applications, it can be used in switching applications with some caution. However, the device may not be optimized for high-frequency switching, and the user should ensure that the device is properly biased and terminated to prevent oscillations.
  • Common issues with the SYM-25DHW+ include oscillations, noise, and distortion. To troubleshoot, check the PCB layout, grounding scheme, and biasing. Ensure that the device is properly terminated, and the input and output impedances are matched. Use a spectrum analyzer or oscilloscope to identify the source of the issue.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SYM-25DHW+ Overview

Use the download button to access the SYM-25DHW+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SYM-2, or try a keyword search, such as RF/Microwave Mixers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
