SYM-30DHW+ - Mini-Circuits

Description: RF Mixer DBL BAL MIX / SURF MT / RoHS High IP3 Frequency Mixer Level 17 (LO Power +17 dBm) 5 to 3000 MHz

Download SYM-30DHW+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

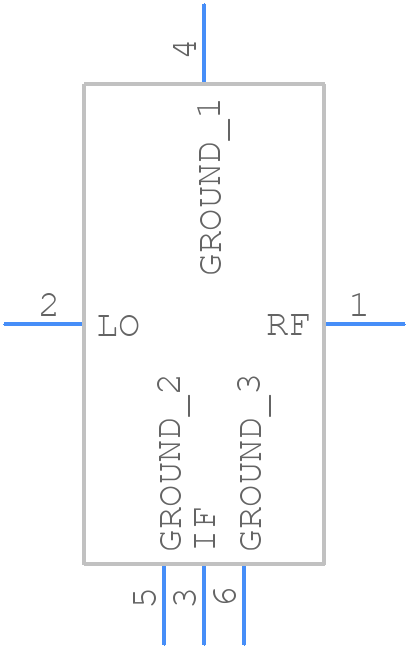

Symbol
SYM-30DHW+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SYM-30DHW+ - Mini-Circuits PCB footprint - Other - Other - SYM-30DHW+-1
click to zoom
3D Models
SYM-30DHW+ - Mini-Circuits - 3D model - Other - SYM-30DHW+-1
click to zoom

SYM-30DHW+ Details

  • Manufacturer Part Number:

    SYM-30DHW+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Additional Feature:

    USABLE TO 3 GHZ

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    9.1 dB

  • Input Power-Max (CW):

    23 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC6/8,.37X.5,170

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • VSWR-Max:

    1.67

SYM-30DHW+ Frequently Asked Questions (FAQs)

  • A good rule of thumb is to use a solid ground plane, keep the signal traces short and away from the edges of the board, and use a common ground point for the amplifier's ground pins. A 4-layer PCB with a dedicated ground plane is recommended.
  • The SYM-30DHW+ requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias voltage is well-regulated and decoupled, and use a low-ESR capacitor to filter the bias voltage.
  • The SYM-30DHW+ can handle up to +20dBm of input power without damage. Exceeding this limit may cause permanent damage to the amplifier.
  • Use a combination of series and shunt inductors to match the amplifier's input and output impedance to the desired frequency range. Additionally, use a pi-network or a T-network to further optimize the impedance matching.
  • The SYM-30DHW+ is rated for operation from -40°C to +85°C. Operating the amplifier outside this range may affect its performance and reliability.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

SYM-30DHW+ Overview

Use the download button to access the SYM-30DHW+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SYM-3, or try a keyword search, such as RF/Microwave Mixers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
