- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SYM-63LH+
- Part Number SYM-63LH+
- Manufacturer Mini-Circuits
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SYM-63LH+-3
- Released Date Feb 7, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SYM-63LH+ Details
-
Manufacturer Part Number:
SYM-63LH+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
India
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6
-
Additional Feature:
HIGH ISOLATION
-
Construction:
COMPONENT
-
Conversion Loss-Max:
10 dB
-
Input Power-Max (CW):
17 dBm
SYM-63LH+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
The SYM-63LH+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can use online impedance matching calculators or consult with a RF engineer to determine the optimal component values.
-
The maximum power handling of the SYM-63LH+ is 1 watt. Exceeding this power rating may cause damage to the device or affect its performance. Ensure that your system's power output is within the recommended range.
-
The SYM-63LH+ is rated for operation up to 85°C. While it can tolerate high temperatures, prolonged exposure to extreme temperatures may affect its performance and lifespan. Consider using a heat sink or thermal management system to maintain a safe operating temperature.
-
To troubleshoot issues, start by verifying the power supply voltage, checking for proper PCB layout and footprint, and ensuring that the device is properly soldered. Use a spectrum analyzer or a vector network analyzer to measure the device's performance and identify any anomalies.
Trust Checks
Expert Contribution
System Verified
Community Approved
SYM-63LH+ Overview

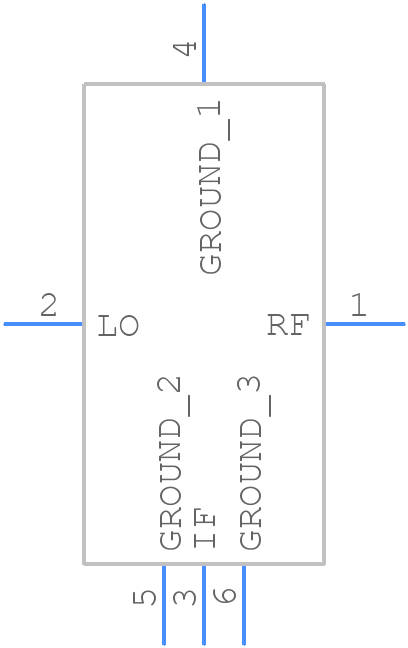

Use the download button to access the SYM-63LH+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SYM-6,
or try a keyword search, such as RF/Microwave Mixers
