SYPD-1+ - Mini-Circuits

Description: Phase Detectors / Shifters PHASE DET / SURF MT / RoHS

Download SYPD-1+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

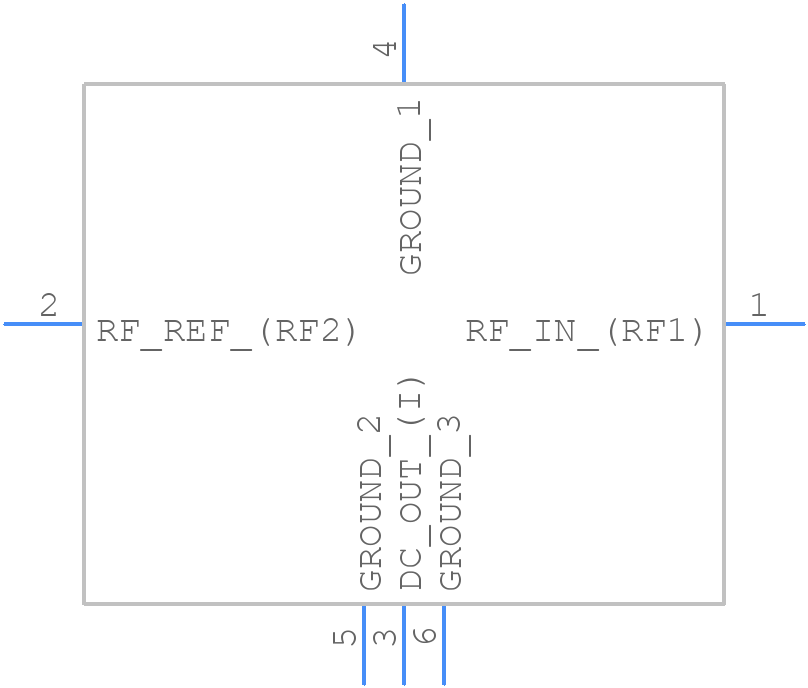

Symbol
SYPD-1+ - Mini-Circuits - PCB symbol
click to zoom

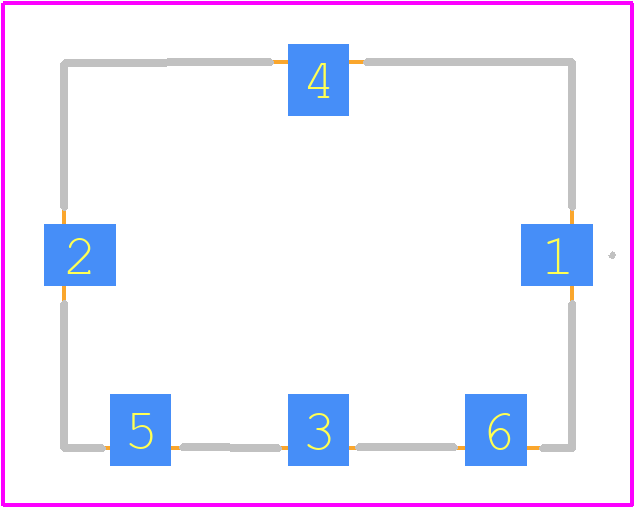

PCB Footprints
SYPD-1+ - Mini-Circuits PCB footprint - Other - Other - SYPD-1+-1
click to zoom
3D Models
SYPD-1+ - Mini-Circuits - 3D model - Other - SYPD-1+-1
click to zoom

SYPD-1+ Details

  • Manufacturer Part Number:

    SYPD-1+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    1993-01-27

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    17 dBm

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    100 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    NEGATIVE

  • RF/Microwave Device Type:

    PHASE DETECTOR

  • Terminal Finish:

    GOLD OVER NICKEL

SYPD-1+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 50-ohm microstrip line with a minimum of 10 mils of clearance around the device to minimize parasitic inductance and capacitance. A solid ground plane is also recommended to reduce noise and improve stability.
  • The SYPD-1+ requires a positive bias voltage (Vcc) of 5V to 15V, and a negative bias voltage (Vee) of -5V to -15V. The recommended bias current is 10mA to 20mA. Ensure that the bias voltage and current are within the recommended range to achieve optimal performance.
  • The SYPD-1+ can handle up to 1W of RF power. However, it's recommended to derate the power handling capability based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
  • Common issues with SYPD-1+ can be troubleshooted by checking the PCB layout, bias voltage and current, and RF input power. Ensure that the device is properly biased, and the RF input power is within the recommended range. Also, check for any signs of overheating, and ensure that the device is properly cooled.
  • Yes, the SYPD-1+ is suitable for high-reliability applications. It's built with high-reliability materials and has undergone rigorous testing to ensure its performance and durability. However, it's recommended to follow proper design and manufacturing practices to ensure the reliability of the overall system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SYPD-1+ Overview

Use the download button to access the SYPD-1+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SYPD-, or try a keyword search, such as RF/Microwave Detectors

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
