SYPS-2-252+ - Mini-Circuits

Description: RF Power Divider 5 MHz ~ 2.5 GHz Isolation (Min) 15dB, 5° Imbalance (Max) 8-SMD, No Lead

Download SYPS-2-252+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

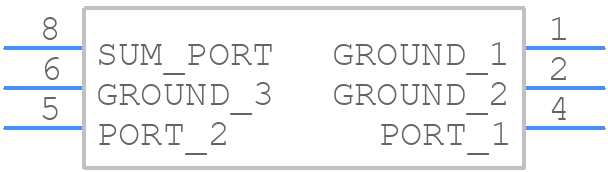

Symbol
SYPS-2-252+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SYPS-2-252+ - Mini-Circuits PCB footprint - Other - Other - AH202_2026-3.3
click to zoom
3D Models
SYPS-2-252+ - Mini-Circuits - 3D model - Other - AH202_2026-3.3
click to zoom

SYPS-2-252+ Details

  • Manufacturer Part Number:

    SYPS-2-252+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-8

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    44.31 dBm

  • Insertion Loss-Max:

    2.4 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • Terminal Finish:

    GOLD OVER NICKEL

  • VSWR-Max:

    1.77

SYPS-2-252+ Frequently Asked Questions (FAQs)

  • A recommended PCB layout and footprint can be found in the Mini-Circuits application note AN-60-001, which provides guidelines for optimal performance and minimization of parasitic effects.
  • Proper thermal management can be achieved by providing a heat sink or thermal pad under the device, and ensuring good airflow around the component. The device's thermal resistance (θja) is specified in the datasheet.
  • The maximum power handling capability of the SYPS-2-252+ is dependent on the frequency and impedance of the input signal. As a general guideline, the device can handle up to 1W of input power, but this should be verified through simulation and testing for specific applications.
  • Yes, the SYPS-2-252+ can be used in a push-pull configuration, but this requires careful impedance matching and biasing to ensure optimal performance and minimize distortion.
  • The recommended biasing scheme for the SYPS-2-252+ is a voltage-controlled current source, with a typical bias voltage of 5V and a quiescent current of 10-20mA. However, the optimal biasing scheme may vary depending on the specific application and frequency range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SYPS-2-252+ Overview

Use the download button to access the SYPS-2-252+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SYPS-, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
