SZESD7016MUTAG - onsemi

Description: Low Capacitance (0.15 pF Typical, I/O to GND); Protection for the Following IEC Standards: IEC 61000-4-2 (Level 4); Low ESD Clamping Voltage; This is a Pb-Free Device

Download SZESD7016MUTAG Model

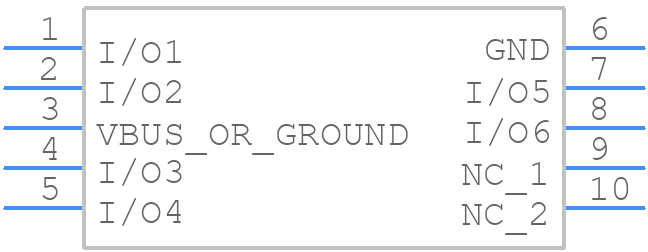

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SZESD7016MUTAG - onsemi PCB footprint - Other - Other - UDFN8, 3.3x1.0, 0.4P CASE 517C-2025
click to zoom
3D Models
SZESD7016MUTAG - onsemi  - 3D model - Other - UDFN8, 3.3x1.0, 0.4P CASE 517C-2025
click to zoom

SZESD7016MUTAG Details

  • Manufacturer Part Number:

    SZESD7016MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN8, 3.3x1.0, 0.4P

  • Package Description:

    UDFN8-10

  • Pin Count:

    8

  • Manufacturer Package Code:

    517CB

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.81

  • Additional Feature:

    ULTRA LOW CAPACITANCE

  • Breakdown Voltage-Min:

    5.5 V

  • Clamping Voltage-Max:

    10 V

  • Configuration:

    COMMON ANODE, 8 ELEMENTS, 6 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    8

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    AEC-Q101; IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Reverse Current-Max:

    1 µA

  • Reverse Test Voltage:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

SZESD7016MUTAG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • The SZESD7016MUTAG requires a bias voltage of 5V ± 10% on the VCC pin. Ensure the bias voltage is stable and decoupled with a 10uF capacitor to minimize noise.
  • The SZESD7016MUTAG is rated for operation from -40°C to 125°C. However, it's recommended to derate the device's performance at temperatures above 85°C to ensure reliability.
  • Yes, the SZESD7016MUTAG is AEC-Q101 qualified and suitable for high-reliability and automotive applications. However, ensure you follow the recommended PCB layout, biasing, and thermal management guidelines to ensure optimal performance and reliability.
  • Start by verifying the PCB layout, biasing, and power supply quality. Check for any signs of overheating, electrical overstress, or physical damage. Consult the datasheet and application notes for troubleshooting guidelines and contact onsemi support if the issue persists.
