SZSMF12CT1G - onsemi

Description: Protects up to 5 Lines in a Single SC-88 Package; Peak Power Dissipation - 100W (8x20 µ Waveform); ESD Rating of Class 3B (Exceeding 8 kV) per Human Body Model and Class C (Exceeding 400 V) per Machine Model; Compliance with IEC 61000-4-2 (ESD) 15 kV (Air), 8 kV (Contact); UL Flammability Rating of 94V-0; AEC-Q101 Qualified and PPAP Capable; SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements

Download SZSMF12CT1G Model

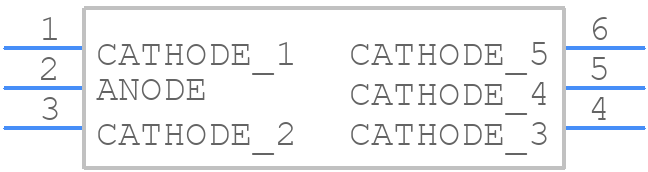

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SZSMF12CT1G - onsemi PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SC−88 2.00x1.25x0.90, 0.65P
click to zoom
3D Models
SZSMF12CT1G - onsemi  - 3D model - SOT23 (6-Pin) - SC−88 2.00x1.25x0.90, 0.65P
click to zoom

SZSMF12CT1G Details

  • Manufacturer Part Number:

    SZSMF12CT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-88/SC70-6/SOT-363 6 LEAD

  • Package Description:

    SC-70, SC-88, SOT-363, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    419B-02

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Breakdown Voltage-Max:

    15 V

  • Breakdown Voltage-Min:

    13.3 V

  • Breakdown Voltage-Nom:

    14.15 V

  • Clamping Voltage-Max:

    23 V

  • Configuration:

    COMMAN ANODE, 5 ELEMENTS, 5 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    100 W

  • Number of Elements:

    5

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    AEC-Q101; IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    12 V

  • Reverse Current-Max:

    0.1 µA

  • Reverse Test Voltage:

    12 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

SZSMF12CT1G Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SZSMF12CT1G is a 1.6mm x 0.8mm pad with a 0.5mm hole in the center for the thermal pad. The datasheet provides a recommended land pattern, but it's essential to consult the onsemi application note for detailed guidelines.
  • To ensure proper soldering, use a soldering iron with a temperature of 260°C to 280°C. Apply a small amount of solder paste to the PCB pads, and then place the SZSMF12CT1G on the pads. Use a reflow oven or a hot air gun to solder the device. Avoid overheating, as it can damage the device.
  • The SZSMF12CT1G has an operating temperature range of -40°C to 150°C. However, the device's performance may degrade at extreme temperatures. It's essential to ensure the device operates within the recommended temperature range for optimal performance and reliability.
  • Yes, the SZSMF12CT1G is suitable for high-reliability applications. It's built with a robust design and undergoes rigorous testing to ensure its performance and reliability. However, it's essential to follow proper design, manufacturing, and testing procedures to ensure the device meets the required reliability standards.
  • The thermal pad on the SZSMF12CT1G is connected to the die attach pad and is not electrically connected to any pin. During PCB assembly, ensure the thermal pad is connected to a solid copper area on the PCB to facilitate heat dissipation. Avoid soldering the thermal pad to the PCB, as it can compromise the device's thermal performance.
