SiT5155AI-FK-33E0-20.000000 - SiTime

Description: ±0.5 ppm, MEMS Elite Platform™ Super-TCXO for GNSS/GPS, 5.0 mm x 3.2 mm Package

Download SiT5155AI-FK-33E0-20.000000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

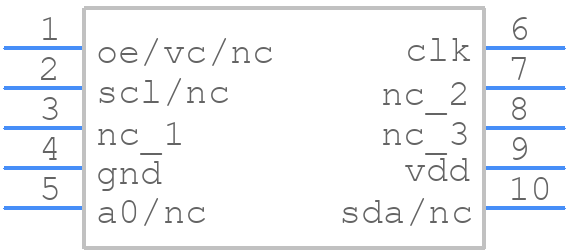

SiT5155AI-FK-33E0-20.000000 - SiTime - PCB symbol
click to zoom
PCB Footprints
SiT5155AI-FK-33E0-20.000000 - SiTime PCB footprint - Other - Other - SiT5155
click to zoom
3D Models
SiT5155AI-FK-33E0-20.000000 - SiTime - 3D model - Other - SiT5155
click to zoom

SiT5155AI-FK-33E0-20.000000 Details

  • Manufacturer Part Number:

    SIT5155AI-FK-33E0-20.000000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CQFN-10

  • Country Of Origin:

    Malaysia, Taiwan, Thailand

  • Manufacturer:

    SiTime Corporation

  • YTEOL:

    6.9

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; MIL-STD-883F

  • Aging:

    1 PPM/YEAR

  • Fall Time-Max:

    1.9 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.5%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Nom:

    20 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVCMOS

  • Output Load:

    15 pF

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC10,.12X.2,58/52/48

  • Physical Dimension:

    5.15mm x 3.35mm x 1.06mm

  • Rise Time-Max:

    1.9 ns

  • Supply Current-Max:

    53 mA

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    GOLD OVER NICKEL
