SiT5156AICFD-28N0-10.000000 - SiTime

Description: The SiT5156 Super-TCXO™ is a highly flexible, tight-stability oscillator for high-reliability systems in industrial, server and storage, networking and telecom, 5 x 3.2mm Package

Download SiT5156AICFD-28N0-10.000000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

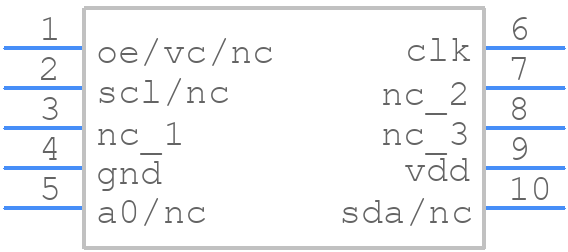

SiT5156AICFD-28N0-10.000000 - SiTime - PCB symbol
click to zoom
PCB Footprints
SiT5156AICFD-28N0-10.000000 - SiTime PCB footprint - Other - Other - SiT5156
click to zoom
3D Models
SiT5156AICFD-28N0-10.000000 - SiTime - 3D model - Other - SiT5156
click to zoom

SiT5156AICFD-28N0-10.000000 Details

  • Manufacturer Part Number:

    SIT5156AICFD-28N0-10.000000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan, Thailand

  • Manufacturer:

    SiTime Corporation

  • YTEOL:

    8

  • Aging:

    1 PPM/FIRST YEAR

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    2.5%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Nom:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CLIPPED SINE

  • Output Impedance:

    10000 Ω

  • Output Level:

    0.8 V

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC10,.12X.2,53/47/43

  • Physical Dimension:

    5.15mm x 3.35mm x 1.06mm

  • Supply Voltage-Max:

    3.08 V

  • Supply Voltage-Min:

    2.52 V

  • Supply Voltage-Nom:

    2.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD OVER NICKEL

SiT5156AICFD-28N0-10.000000 Frequently Asked Questions (FAQs)

  • SiTime provides a recommended PCB layout guide for their oscillators, which includes guidelines for pad layout, trace routing, and component placement to ensure optimal performance and minimize noise.
  • The SIT5156AICFD-28N0-10.000000 is a programmable oscillator, and the frequency can be configured using SiTime's programming software or by using a specific pin configuration. Refer to the datasheet or contact SiTime support for more information.
  • The SIT5156AICFD-28N0-10.000000 has an operating temperature range of -40°C to +85°C, but it can be customized for extended temperature ranges upon request.
  • The SIT5156AICFD-28N0-10.000000 operates on a 2.5V to 3.3V supply voltage, but SiTime offers oscillators with different voltage options. Check the datasheet or contact SiTime support to determine the best oscillator for your specific application.
  • Lead time and availability may vary depending on the region, quantity, and other factors. Contact SiTime's sales team or authorized distributors for the most up-to-date information on lead time and availability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SiT5156AICFD-28N0-10.000000 Overview

Use the download button to access the SiT5156AICFD-28N0-10.000000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SiT51, or try a keyword search, such as TCXO
