SiT5156AICFK-33N0-10.000000 - SiTime

Description: The SiT5156 Super-TCXO™ is a highly flexible, tight-stability oscillator for high-reliability systems in industrial, server and storage, networking and telecom, 5 x 3.2mm Package

Download SiT5156AICFK-33N0-10.000000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

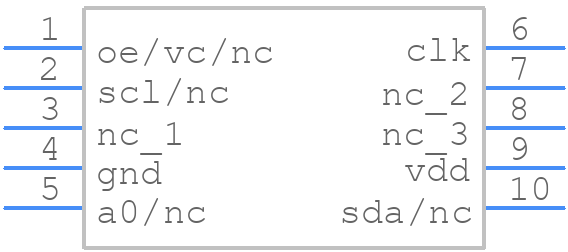

Symbol
SiT5156AICFK-33N0-10.000000 - SiTime - PCB symbol
click to zoom
PCB Footprints
SiT5156AICFK-33N0-10.000000 - SiTime PCB footprint - Other - Other - SiT5156
click to zoom
3D Models
SiT5156AICFK-33N0-10.000000 - SiTime - 3D model - Other - SiT5156
click to zoom

SiT5156AICFK-33N0-10.000000 Details

  • Manufacturer Part Number:

    SIT5156AICFK-33N0-10.000000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan, Thailand

  • Manufacturer:

    SiTime Corporation

  • YTEOL:

    7.55

  • Aging:

    1 PPM/FIRST YEAR

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.5%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Nom:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CLIPPED SINE

  • Output Impedance:

    10000 Ω

  • Output Level:

    0.8 V

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC10,.12X.2,53/47/43

  • Physical Dimension:

    5.15mm x 3.35mm x 1.06mm

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

SiT5156AICFK-33N0-10.000000 Frequently Asked Questions (FAQs)

  • SiTime provides a recommended PCB layout guidelines in their application notes (e.g., AN-002: PCB Layout Guidelines for SiTime Oscillators). Follow these guidelines to ensure optimal performance and reduce noise sensitivity.
  • Use SiTime's online Frequency Configuration Tool or consult the datasheet for specific frequency configuration instructions. The tool allows you to select the desired frequency and generates a configuration code for the oscillator.
  • The typical power consumption of the SIT5156AICFK-33N0-10.000000 oscillator is around 3.5mA, as specified in the datasheet. However, this value may vary depending on the specific application and operating conditions.
  • Yes, the SIT5156AICFK-33N0-10.000000 oscillator is designed for high-reliability applications. It features a robust design, high-quality components, and is manufactured using a rigorous quality control process. Consult SiTime's reliability data and certifications (e.g., AEC-Q100) for more information.
  • The SIT5156AICFK-33N0-10.000000 oscillator is rated for operation up to 125°C. However, the device's performance and reliability may degrade at higher temperatures. Consult SiTime's datasheet and thermal management guidelines for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SiT5156AICFK-33N0-10.000000 Overview

Use the download button to access the SiT5156AICFK-33N0-10.000000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SiT51, or try a keyword search, such as TCXO
