SiT5157AI-FK-33N0-100.000000 - SiTime

Description: 60 MHz to 220 MHz, ±0.5 to ±2.5 ppm, Elite Platform Super-TCXO, 5.0 mm x 3.2 mm Package

Download SiT5157AI-FK-33N0-100.000000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

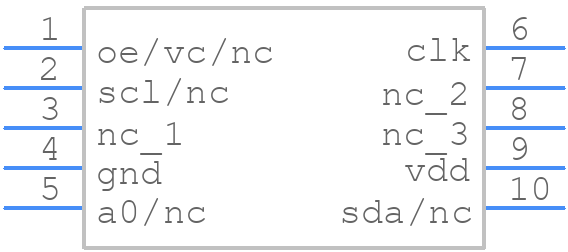

Symbol
SiT5157AI-FK-33N0-100.000000 - SiTime - PCB symbol
click to zoom
PCB Footprints
SiT5157AI-FK-33N0-100.000000 - SiTime PCB footprint - Other - Other - SiT5157
click to zoom
3D Models
SiT5157AI-FK-33N0-100.000000 - SiTime - 3D model - Other - SiT5157
click to zoom

SiT5157AI-FK-33N0-100.000000 Details

  • Manufacturer Part Number:

    SIT5157AI-FK-33N0-100.000000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CQFN-10

  • Country Of Origin:

    Malaysia, Taiwan, Thailand

  • Manufacturer:

    SiTime Corporation

  • YTEOL:

    7

  • Additional Feature:

    MIL-STD-883F

  • Aging:

    1 PPM/YEAR

  • Fall Time-Max:

    1.9 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.5%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Nom:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVCMOS

  • Output Load:

    15 pF

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC10,.12X.2,58/52/48

  • Physical Dimension:

    5.15mm x 3.35mm x 1.06mm

  • Rise Time-Max:

    1.9 ns

  • Supply Current-Max:

    62 mA

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    GOLD OVER NICKEL

SiT5157AI-FK-33N0-100.000000 Frequently Asked Questions (FAQs)

  • SiTime recommends following a specific PCB layout guideline to minimize noise and ensure optimal performance. This includes using a solid ground plane, keeping the oscillator input and output traces short and shielded, and avoiding vias near the oscillator.
  • The SIT5157AI-FK-33N0-100.000000 is a programmable oscillator, and the frequency output can be configured using the SiTime Programmer software or by using the device's I2C interface. The specific configuration depends on the desired frequency and other parameters.
  • The SIT5157AI-FK-33N0-100.000000 has an operating temperature range of -40°C to +85°C, but it can be extended to -55°C to +125°C with derating. However, it's essential to consult the datasheet and application notes for specific temperature-related considerations.
  • SiTime provides jitter specifications in the datasheet, but for custom jitter requirements, it's recommended to consult with SiTime's application engineers or use their jitter calculator tool to determine the optimal configuration and component selection.
  • While the SIT5157AI-FK-33N0-100.000000 is a high-quality oscillator, it's not specifically designed for radiation-hardened or high-reliability applications. SiTime offers other products that are designed for such applications, and it's recommended to consult with their application engineers for specific requirements.
