T1-6T-KK81+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers 1:1 CORE & WIRE Transformer, 0.015 - 300 MHz, 50?

Download T1-6T-KK81+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

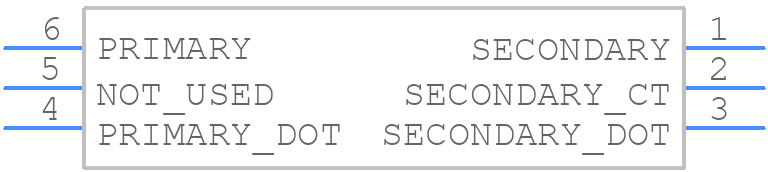

T1-6T-KK81+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
T1-6T-KK81+ - Mini-Circuits PCB footprint - Other - Other - 6-SMD, Gull Wing
click to zoom
3D Models
T1-6T-KK81+ - Mini-Circuits - 3D model - Other - 6-SMD, Gull Wing
click to zoom

T1-6T-KK81+ Details

  • Manufacturer Part Number:

    T1-6T-KK81+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    OHMS RATIO IS 1

  • Application:

    SIGNAL

  • Cut-off Frequency-Max:

    300 MHz

  • Cut-off Frequency-Min:

    0.015 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    5.84 mm

  • Insertion Loss:

    3 dB

  • Length:

    7.62 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    300000 kHz

  • Operating Frequency-Min:

    15 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    6.86 mm

T1-6T-KK81+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout and footprint for the T1-6T-KK81+ can be found in the Mini-Circuits application note AN-60-001, which provides guidelines for optimal PCB design and layout to ensure proper performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt components. Mini-Circuits provides a impedance matching calculator tool on their website, which can help determine the required component values for optimal matching.
  • The maximum power handling of the T1-6T-KK81+ is 1 Watt. Exceeding this power rating may cause damage to the device or affect its performance and reliability.
  • The T1-6T-KK81+ is rated for operation up to 85°C. However, for high-temperature applications above 85°C, derating of the device's power handling and performance may be necessary. Consult with Mini-Circuits' application engineers for guidance on high-temperature operation.
  • Mini-Circuits provides a troubleshooting guide in their application note AN-60-002, which covers common issues and their solutions. Additionally, engineers can contact Mini-Circuits' technical support for assistance with troubleshooting and debugging.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T1-6T-KK81+ Overview

Use the download button to access the T1-6T-KK81+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T1-6T, or try a keyword search, such as RF Transformers
