T1M-05-GF-S-RA-TR - SAMTEC

Description: Connector Header Surface Mount, Right Angle 5 position 0.039" (1.00mm),250VAC, 353VDC -55°C ~ 85°C Male Pin

Download T1M-05-GF-S-RA-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

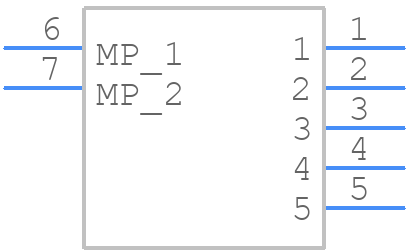

Symbol
T1M-05-GF-S-RA-TR - SAMTEC - PCB symbol
click to zoom

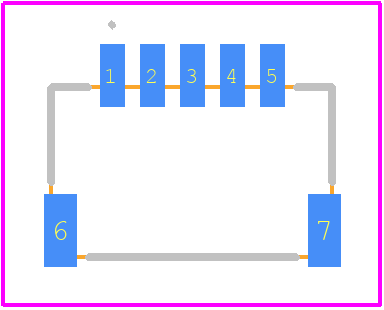

PCB Footprints
T1M-05-GF-S-RA-TR - SAMTEC PCB footprint - Other - Other - T1M-05-GF-S-RA-TR-2
click to zoom
3D Models
T1M-05-GF-S-RA-TR - SAMTEC - 3D model - Other - T1M-05-GF-S-RA-TR-2
click to zoom

T1M-05-GF-S-RA-TR Details

  • Manufacturer Part Number:

    T1M-05-GF-S-RA-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    10

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (3) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TR

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    5

  • UL Flammability Code:

    94V-0

T1M-05-GF-S-RA-TR Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the T1M-05-GF-S-RA-TR connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the T1M-05-GF-S-RA-TR connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 20 G peak acceleration.
  • Yes, the T1M-05-GF-S-RA-TR connector is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and humidity resistance of 95% RH at 40°C.
  • The T1M-05-GF-S-RA-TR connector has a mating cycle life of 500 cycles minimum, according to Samtec's testing and validation.
  • Yes, the T1M-05-GF-S-RA-TR connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on hazardous substances and chemical safety.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T1M-05-GF-S-RA-TR Overview

Use the download button to access the T1M-05-GF-S-RA-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T1M-0, or try a keyword search, such as Headers and Edge Type Connectors
