Part Image

T1M-10-GF-DV - SAMTEC

Description: Headers & Wire Housings 1.00 mm Discrete Wire Terminal Strip

Download T1M-10-GF-DV Model

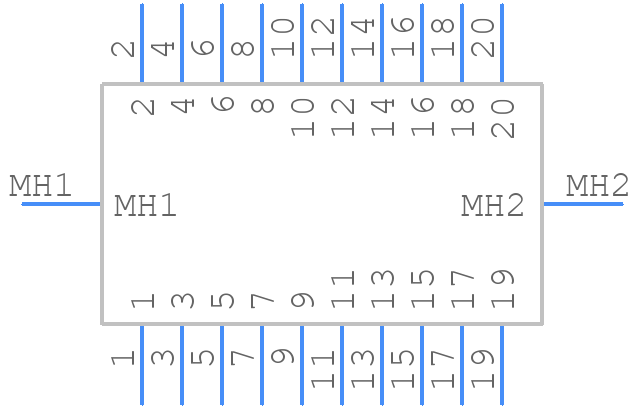

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

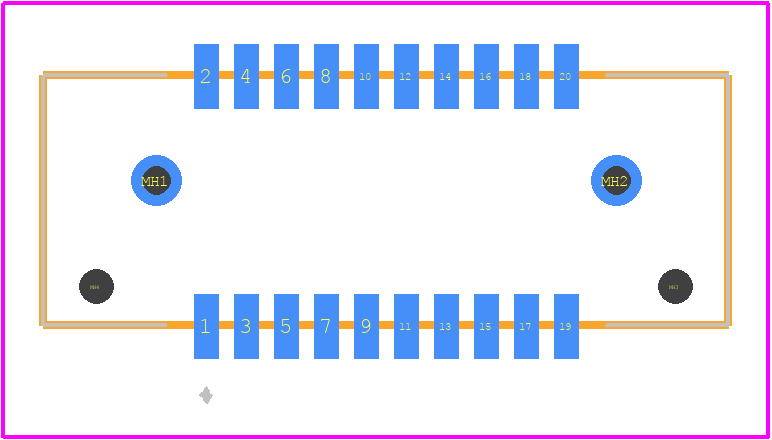

PCB Footprints
T1M-10-GF-DV - SAMTEC PCB footprint - Other - Other - T1M-10-GF-DV-1
click to zoom
3D Models
T1M-10-GF-DV - SAMTEC  - 3D model - Other - T1M-10-GF-DV-1
click to zoom

T1M-10-GF-DV Details

  • Manufacturer Part Number:

    T1M-10-GF-DV

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8.15

  • Board Mounting Option:

    HOLE .034-.044

  • Body Breadth:

    0.246 inch

  • Body Depth:

    0.268 inch

  • Body Length:

    0.674 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.039 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    6.25 mm

  • Plating Thickness:

    3u inch

  • Rated Current (Signal):

    3.3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0
