Part Image

T1M-20-GF-DH - SAMTEC

Description: Headers & Wire Housings

Download T1M-20-GF-DH Model

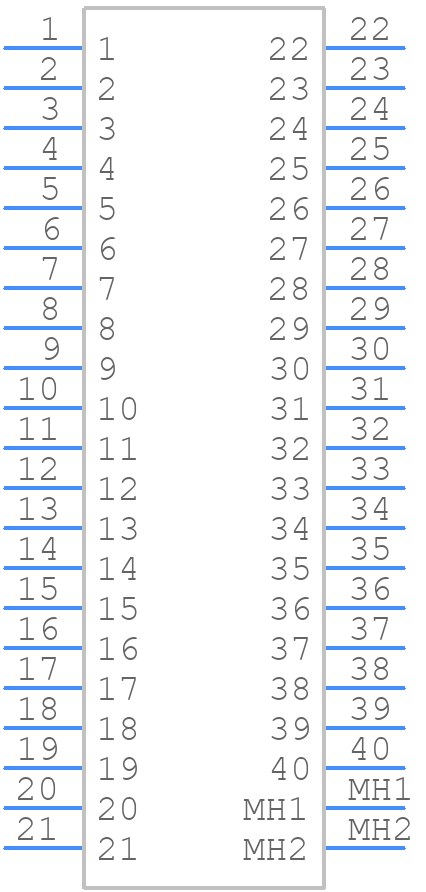

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
T1M-20-GF-DH - SAMTEC PCB footprint - Other - Other - T1M-20-GF-DH-3
click to zoom
3D Models
T1M-20-GF-DH - SAMTEC  - 3D model - Other - T1M-20-GF-DH-3
click to zoom

T1M-20-GF-DH Details

  • Manufacturer Part Number:

    T1M-20-GF-DH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Costa Rica, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 5 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.264 inch

  • Body Depth:

    0.297 inch

  • Body Length:

    1.142 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.039 inch

  • Mating Contact Row Spacing:

    0.116 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    3u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3.3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    2.22 N

T1M-20-GF-DH Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • To ensure reliable connections, make sure to follow proper termination techniques, use the recommended torque values, and inspect the connector for any signs of wear or damage.
  • The maximum operating temperature for the T1M-20-GF-DH connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • Yes, the T1M-20-GF-DH connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and securing procedures to ensure the connector remains secure.
  • Use a soft, dry brush to remove any debris or contaminants from the connector. Avoid using harsh chemicals or solvents, as they may damage the connector's materials.
