T1M-20-GF-S-RA-TR - SAMTEC

Description: Headers & Wire Housings 1.00 DISCRETE WIRE COMPONENTS

Download T1M-20-GF-S-RA-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T1M-20-GF-S-RA-TR - SAMTEC - PCB symbol
click to zoom
PCB Footprints

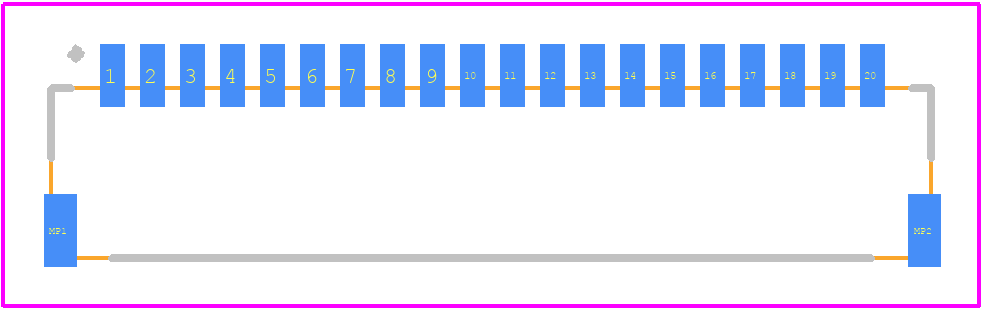

T1M-20-GF-S-RA-TR - SAMTEC PCB footprint - Other - Other - T1M-20-GF-S-RA-TR-5
click to zoom
3D Models
T1M-20-GF-S-RA-TR - SAMTEC - 3D model - Other - T1M-20-GF-S-RA-TR-5
click to zoom

T1M-20-GF-S-RA-TR Details

  • Manufacturer Part Number:

    T1M-20-GF-S-RA-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    10

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (3) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TR

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

T1M-20-GF-S-RA-TR Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the T1M-20-GF-S-RA-TR connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the T1M-20-GF-S-RA-TR connector is designed to withstand high-vibration environments. The ruggedized design and secure locking mechanism ensure reliable connections even in harsh conditions.
  • The T1M-20-GF-S-RA-TR connector has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
  • Yes, the T1M-20-GF-S-RA-TR connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The typical lead time for delivery of the T1M-20-GF-S-RA-TR connector varies depending on the quantity and availability. However, Samtec Inc typically offers a lead time of 2-4 weeks for standard orders.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T1M-20-GF-S-RA-TR Overview

Use the download button to access the T1M-20-GF-S-RA-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T1M-2, or try a keyword search, such as Headers and Edge Type Connectors
