T200F-010.0M - Connor Winfield

Description: TCXO LVCMOS Oscillator 3.3V - 10-SMD, No Lead

Download T200F-010.0M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

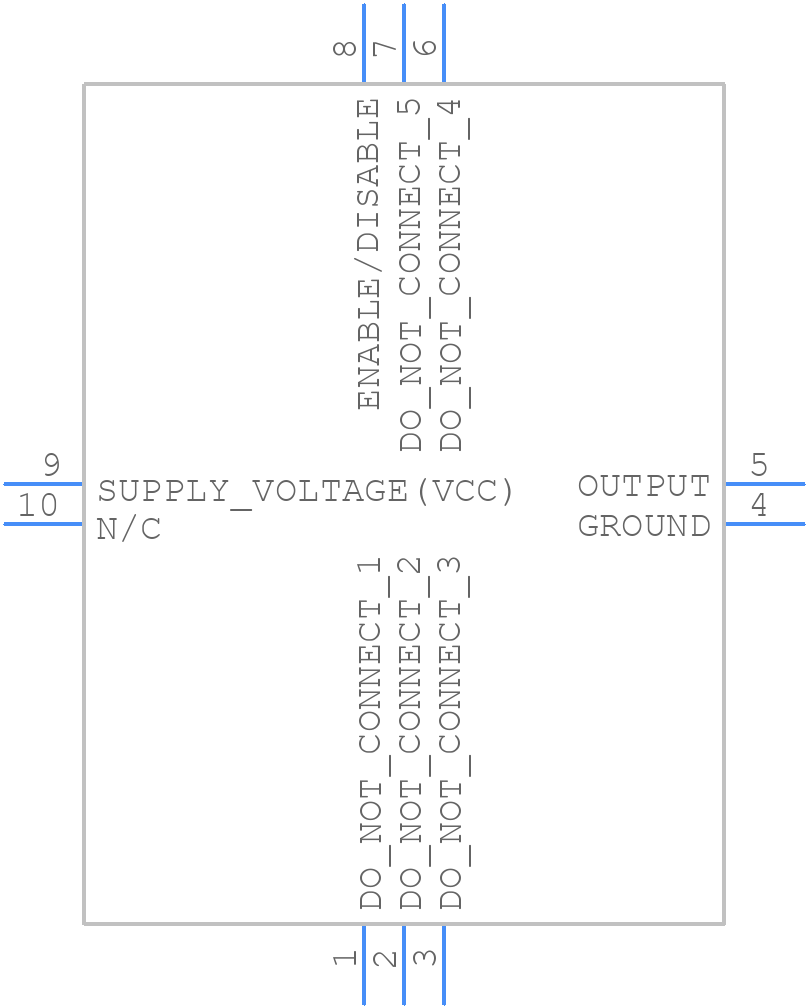

Symbol
T200F-010.0M - Connor Winfield - PCB symbol
click to zoom
PCB Footprints
T200F-010.0M - Connor Winfield PCB footprint - Other - Other - T200F-010.0M-2
click to zoom
3D Models
T200F-010.0M - Connor Winfield - 3D model - Other - T200F-010.0M-2
click to zoom

T200F-010.0M Details

  • Manufacturer Part Number:

    T200F-010.0M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • Manufacturer:

    Connor-Winfield

  • YTEOL:

    7

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION

  • Aging:

    0.04 PPM/DAY

  • Fall Time-Max:

    8 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.2%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Nom:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVCMOS

  • Output Load:

    15 pF

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC10,.2X.28,100/50

  • Physical Dimension:

    7mm x 5mm x 2.4mm

  • Rise Time-Max:

    8 ns

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

T200F-010.0M Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the T200F-010.0M is -40°C to +85°C, as specified in the datasheet.
  • To ensure the oscillator starts up correctly, make sure to follow the recommended power-up sequence, provide a stable power supply, and meet the specified voltage and frequency requirements.
  • The typical start-up time for the T200F-010.0M is around 10ms, but this can vary depending on the specific application and operating conditions.
  • Yes, the T200F-010.0M is designed to operate in high-vibration environments, but it's essential to follow proper mounting and soldering techniques to ensure reliable operation.
  • To troubleshoot issues with the oscillator's frequency or amplitude, check the power supply, ensure proper termination, and verify that the load capacitance meets the recommended specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T200F-010.0M Overview

Use the download button to access the T200F-010.0M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T200F, or try a keyword search, such as TCXO
