The recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm) for the screws on the T2M-105-01-S-D-TH-WT connector, as specified in Samtec's application notes.
Yes, the T2M-105-01-S-D-TH-WT connector is designed to withstand high-vibration environments. Samtec's testing has shown that it can withstand vibrations up to 20 G's, making it suitable for use in ruggedized applications.
The maximum operating temperature for the T2M-105-01-S-D-TH-WT connector is 125°C (257°F), as specified in the datasheet. However, it's recommended to derate the connector's performance at temperatures above 100°C (212°F).
The T2M-105-01-S-D-TH-WT connector is not sealed, so it's not recommended for use in humid or wet environments. If you need a connector for use in harsh environments, consider Samtec's sealed or waterproof options, such as the IP67-rated T2M-105-01-S-D-TH-WT-IP67.
The mating cycle life of the T2M-105-01-S-D-TH-WT connector is 500 cycles, as specified in the datasheet. This means the connector can withstand 500 mating and unmating cycles without significant degradation in performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
T2M-105-01-S-D-TH-WT Overview

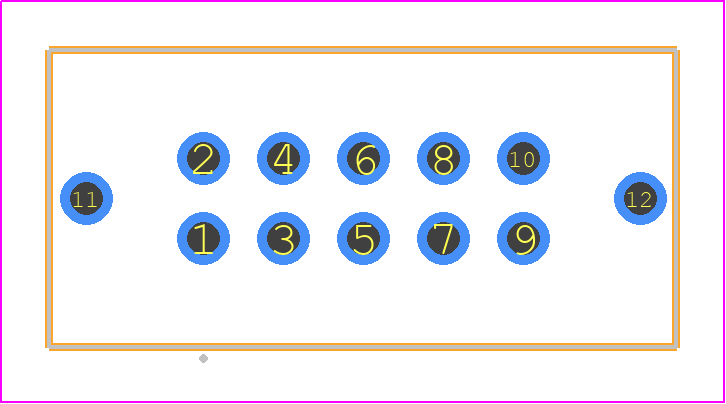

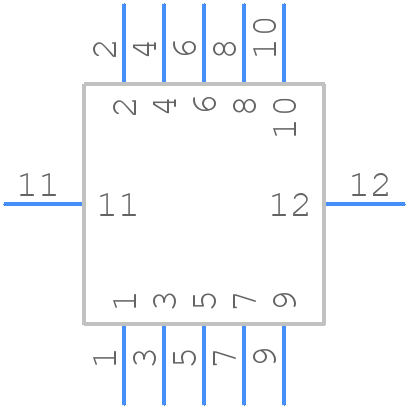

Use the download button to access the T2M-105-01-S-D-TH-WT schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like T2M-1,
or try a keyword search, such as Headers and Edge Type Connectors
