T2M-108-01-L-D-TH-WT footprint, schematic symbol and 3D model by SAMTEC

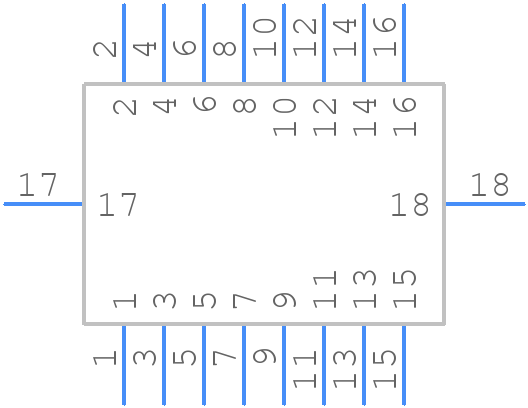

Symbol

click to zoom

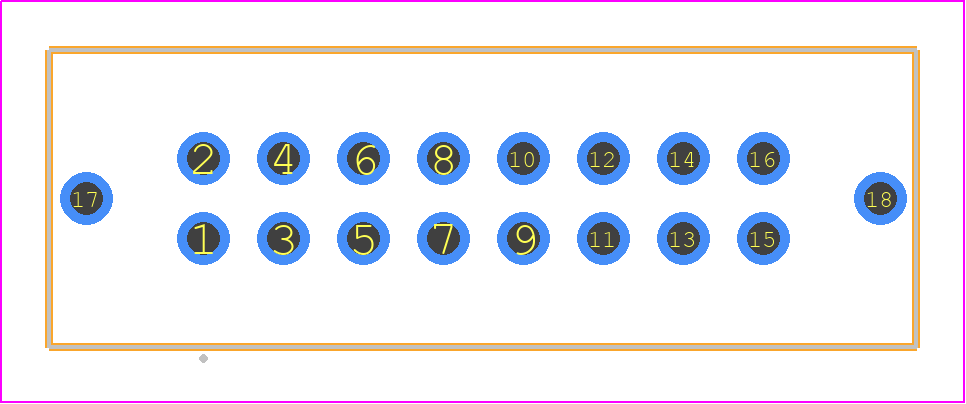

PCB Footprints

T2M-108-01-L-D-TH-WT - SAMTEC PCB footprint - Other - Other - T2M-108-01-Z-D-TH-WT

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for T2M-108-01-L-D-TH-WT
Part Number T2M-108-01-L-D-TH-WT
Manufacturer SAMTEC
Pin Count 18
Part Category Connector
Package Category Other
Footprint Name Other - T2M-108-01-Z-D-TH-WT
Released Date Oct 17, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

T2M-108-01-L-D-TH-WT Details

Manufacturer Part Number:
T2M-108-01-L-D-TH-WT
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 2 Days
Manufacturer:
Samtec Inc
YTEOL:
8
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
16

T2M-108-01-L-D-TH-WT Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the T2M-108-01-L-D-TH-WT is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with intense vibration.
The T2M-108-01-L-D-TH-WT is designed to operate in a wide temperature range of -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow Samtec's guidelines for environmental considerations and ensure proper sealing and protection for the connector.
The T2M-108-01-L-D-TH-WT has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
No, the T2M-108-01-L-D-TH-WT is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

T2M-108-01-L-D-TH-WT Overview

Use the download button to access the T2M-108-01-L-D-TH-WT schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like T2M-1, or try a keyword search, such as Headers and Edge Type Connectors
