T2M-108-01-S-D-TH-WT footprint, schematic symbol and 3D model by SAMTEC

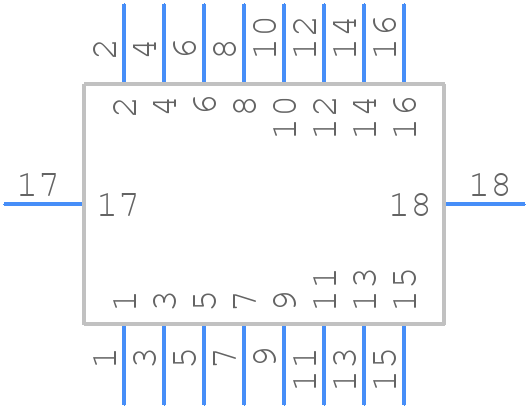

Symbol

click to zoom

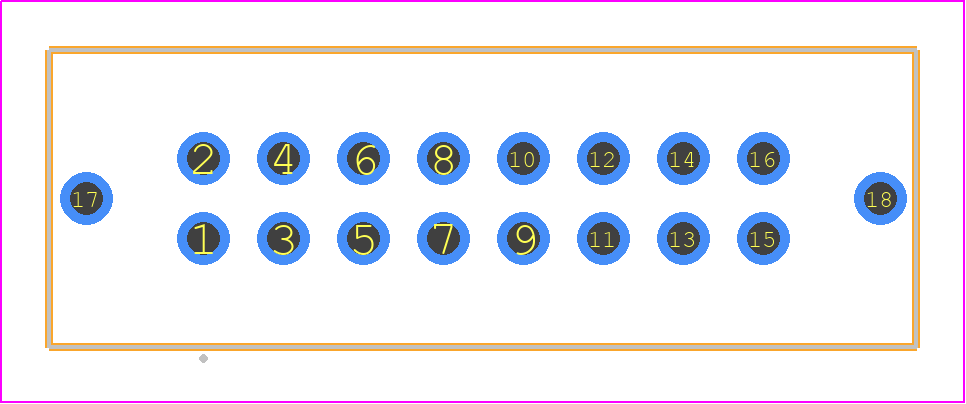

PCB Footprints

T2M-108-01-S-D-TH-WT - SAMTEC PCB footprint - Other - Other - T2M-108-01-Z-D-TH-WT

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for T2M-108-01-S-D-TH-WT
Part Number T2M-108-01-S-D-TH-WT
Manufacturer SAMTEC
Pin Count 18
Part Category Connector
Package Category Other
Footprint Name Other - T2M-108-01-Z-D-TH-WT
Released Date Jun 30, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

T2M-108-01-S-D-TH-WT Details

Manufacturer Part Number:
T2M-108-01-S-D-TH-WT
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
16

T2M-108-01-S-D-TH-WT Frequently Asked Questions (FAQs)

The recommended torque for the screws on the T2M-108-01-S-D-TH-WT connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the T2M-108-01-S-D-TH-WT connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
The maximum operating temperature for the T2M-108-01-S-D-TH-WT connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
The T2M-108-01-S-D-TH-WT connector has a waterproof rating of IP67, which means it can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to follow Samtec's guidelines for sealing and potting to ensure reliable operation in humid or wet environments.
The recommended mating cycle for the T2M-108-01-S-D-TH-WT connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and environmental conditions.
