T2M-125-01-L-D-RA footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

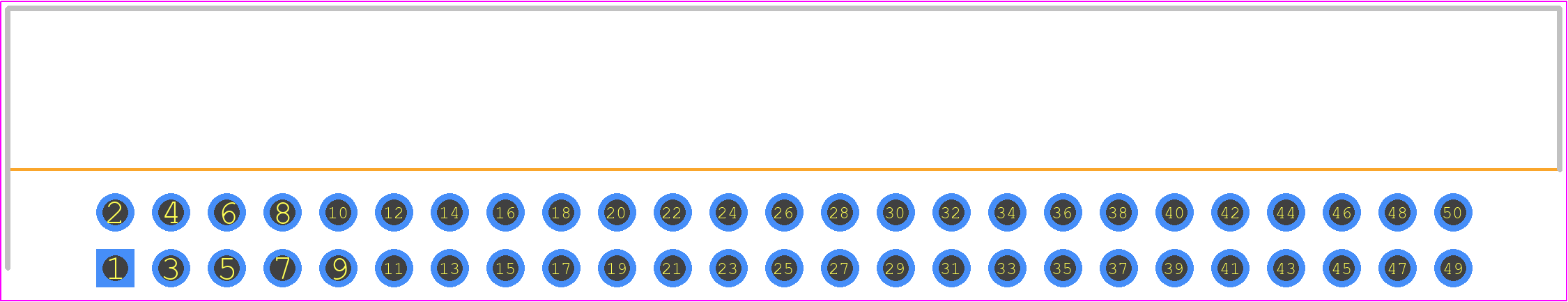

PCB Footprints

T2M-125-01-L-D-RA - SAMTEC PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - T2M-125-01-L-D-RA

click to zoom

3D Models

T2M-125-01-L-D-RA - SAMTEC - 3D model - Header, Shrouded - Right Angle PTH Box - T2M-125-01-L-D-RA

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for T2M-125-01-L-D-RA
Part Number T2M-125-01-L-D-RA
Manufacturer SAMTEC
Pin Count 50
Part Category Connector
Package Category Header, Shrouded - Right Angle PTH Box
Footprint Name Header, Shrouded - Right Angle PTH Box - T2M-125-01-L-D-RA
Released Date Jun 13, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

T2M-125-01-L-D-RA Details

Manufacturer Part Number:
T2M-125-01-L-D-RA
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
TIGER EYE SYSTEM
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
50

T2M-125-01-L-D-RA Frequently Asked Questions (FAQs)

The recommended torque for the screws on the T2M-125-01-L-D-RA connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the T2M-125-01-L-D-RA connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
Yes, the T2M-125-01-L-D-RA connector is compatible with lead-free soldering processes. Samtec recommends following their soldering guidelines and using a soldering temperature of 260°C (500°F) or lower.
The maximum operating temperature range for the T2M-125-01-L-D-RA connector is -55°C to 125°C (-65°F to 257°F) according to Samtec's datasheet.
The T2M-125-01-L-D-RA connector is not designed for use in wet or humid environments. Samtec recommends using a connector with a higher ingress protection rating (IP67 or higher) for such applications.
