T2M-150-01-L-D-TH-WT footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

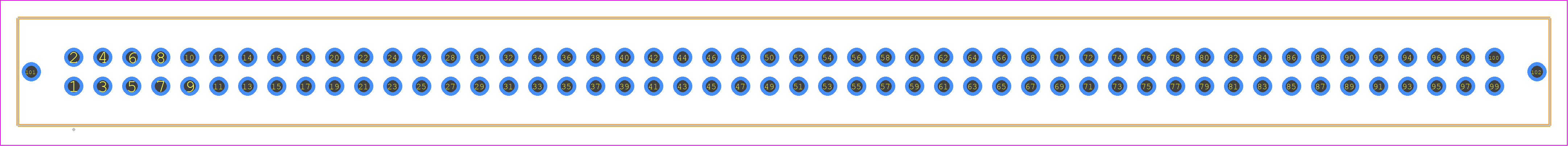

T2M-150-01-L-D-TH-WT - SAMTEC PCB footprint - Other - Other - T2M-150-01-Z-D-TH-WT

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for T2M-150-01-L-D-TH-WT
Part Number T2M-150-01-L-D-TH-WT
Manufacturer SAMTEC
Pin Count 102
Part Category Connector
Package Category Other
Footprint Name Other - T2M-150-01-Z-D-TH-WT
Released Date Jun 30, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

T2M-150-01-L-D-TH-WT Details

Manufacturer Part Number:
T2M-150-01-L-D-TH-WT
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
100

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

T2M-150-01-L-D-TH-WT Overview

Use the download button to access the T2M-150-01-L-D-TH-WT schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like T2M-1, or try a keyword search, such as Headers and Edge Type Connectors
