T35F400C4 - Efinix

Description: Trion® Field Programmable Gate Array (FPGA) IC 230 1510400 31680 400-BGA

Download T35F400C4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

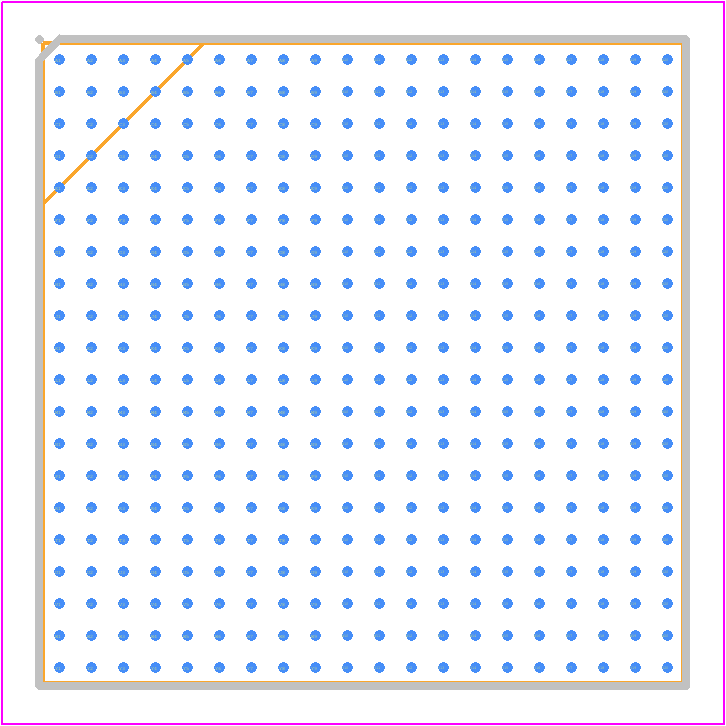

T35F400C4 - Efinix PCB footprint - BGA - BGA - 400-Ball FBGA
click to zoom
3D Models
T35F400C4 - Efinix  - 3D model - BGA - 400-Ball FBGA
click to zoom

T35F400C4 Details

  • Manufacturer Part Number:

    T35F400C4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    FBGA-400

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    EFINIX

  • JESD-30 Code:

    S-PBGA-B400

  • Length:

    16 mm

  • Moisture Sensitivity Level:

    3

  • Number of Inputs:

    230

  • Number of Logic Cells:

    31680

  • Number of Outputs:

    230

  • Number of Terminals:

    400

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    SMIC

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    16 mm

T35F400C4 Frequently Asked Questions (FAQs)

  • EFINIX provides a PCB design guide that recommends a multi-layer PCB with a minimum of 4 layers, with the top and bottom layers dedicated to signals, and the inner layers for power and ground. It's also recommended to use a 50-ohm impedance-controlled routing strategy for high-speed signals.
  • To optimize power consumption, use the EFINIX Power Analyzer tool to estimate power consumption based on your design. Then, implement power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS). Additionally, consider using the FPGA's built-in power management features, such as the Power Management Unit (PMU).
  • To secure your FPGA design, implement a secure boot process using the FPGA's built-in security features, such as the Secure Boot Loader (SBL) and the Advanced Encryption Standard (AES). Use encryption for sensitive data, and implement access controls and authentication mechanisms to prevent unauthorized access. Additionally, consider using a secure communication protocol, such as SSL/TLS, for data transmission.
  • Use the EFINIX ChipScope Pro tool to debug and troubleshoot your FPGA design. This tool provides real-time visibility into the FPGA's internal signals, allowing you to identify and fix issues quickly. Additionally, use the FPGA's built-in debug features, such as the Integrated Logic Analyzer (ILA) and the Logic Analyzer (LA), to capture and analyze signal activity.
  • The T35F400C4 FPGA has a maximum junction temperature of 100°C. To ensure reliable operation, implement a thermal management strategy that includes a heat sink, thermal interface material, and airflow management. Monitor the FPGA's temperature using the on-chip temperature sensor and adjust the thermal management strategy accordingly.
