T4-1-X65+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers 1:4 CORE & WIRE Transformer, 0.2 - 350 MHz, 50?

Download T4-1-X65+ Model

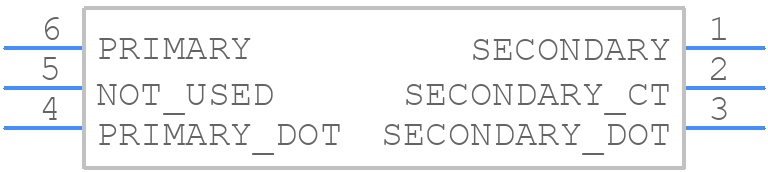

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
T4-1-X65+ - Mini-Circuits PCB footprint - Other - Other - T4-1-X65+-3
click to zoom
3D Models
T4-1-X65+ - Mini-Circuits  - 3D model - Other - T4-1-X65+-3
click to zoom

T4-1-X65+ Details

  • Manufacturer Part Number:

    T4-1-X65+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    OHMS RATIO IS 4

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    350 MHz

  • Cut-off Frequency-Min:

    0.2 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    5.84 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    7.62 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    350000 kHz

  • Operating Frequency-Min:

    200 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Power Rating:

    0.25 W

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    6.86 mm
