T821116A1S100CEU - Amphenol

Description: Amphenol T821, 16 Way, 2 Row, Straight PCB Header

Download T821116A1S100CEU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T821116A1S100CEU - Amphenol - PCB symbol
click to zoom
PCB Footprints

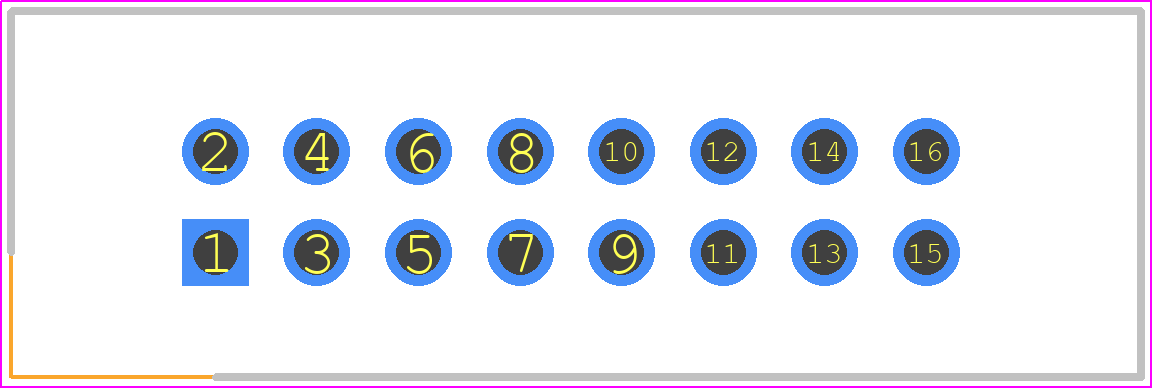

T821116A1S100CEU - Amphenol PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - T821116A1S100CEU
click to zoom
3D Models
T821116A1S100CEU - Amphenol - 3D model - Header, Shrouded - Straight PTH Box - T821116A1S100CEU
click to zoom

T821116A1S100CEU Details

  • Manufacturer Part Number:

    T821116A1S100CEU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

T821116A1S100CEU Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads.
  • Yes, the T821116A1S100CEU is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector.
  • Yes, the T821116A1S100CEU is designed to meet IP67 standards, making it suitable for outdoor use, but it's recommended to follow the manufacturer's guidelines for environmental sealing and protection.
  • The maximum operating temperature range for the T821116A1S100CEU is -40°C to 125°C (-40°F to 257°F).
  • It's not recommended to use the T821116A1S100CEU with a different mating connector from a different manufacturer, as compatibility and performance cannot be guaranteed.
