T821124A1S100CEU - Amphenol

Description: HEADER, VERTICAL, 2.54MM, 24WAY Amphenol T821 Series, 2.54mm Pitch 24 Way 2 Row Straight PCB Header, Solder Termination, 3A

Download T821124A1S100CEU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T821124A1S100CEU - Amphenol - PCB symbol
click to zoom
PCB Footprints

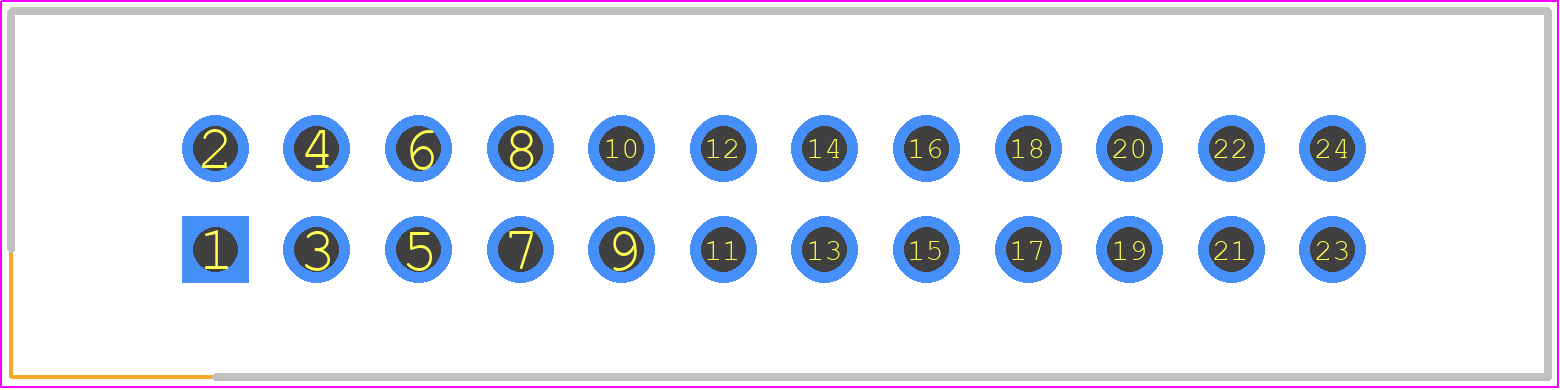

T821124A1S100CEU - Amphenol PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - T821124A1S100CEU_2020
click to zoom
3D Models
T821124A1S100CEU - Amphenol - 3D model - Header, Shrouded - Straight PTH Box - T821124A1S100CEU_2020
click to zoom

T821124A1S100CEU Details

  • Manufacturer Part Number:

    T821124A1S100CEU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

T821124A1S100CEU Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads to ensure proper mating and to prevent damage to the connector.
  • Yes, the T821124A1S100CEU is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
  • The T821124A1S100CEU is designed to operate in a temperature range of -40°C to 125°C and can withstand humidity up to 95%. However, it's recommended to consult the datasheet and manufacturer's guidelines for specific environmental requirements.
  • The T821124A1S100CEU has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
  • The T821124A1S100CEU is designed to be compatible with other Amphenol Corporation connectors. However, compatibility with other manufacturers' connectors is not guaranteed and may require additional testing and validation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T821124A1S100CEU Overview

Use the download button to access the T821124A1S100CEU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T8211, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
