T821140A1S100CEU - Amphenol

Description: AMPHENOL - T821140A1S100CEU - HEADER, VERTICAL, 2.54MM, 40WAY

Download T821140A1S100CEU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T821140A1S100CEU - Amphenol - PCB symbol
click to zoom
PCB Footprints

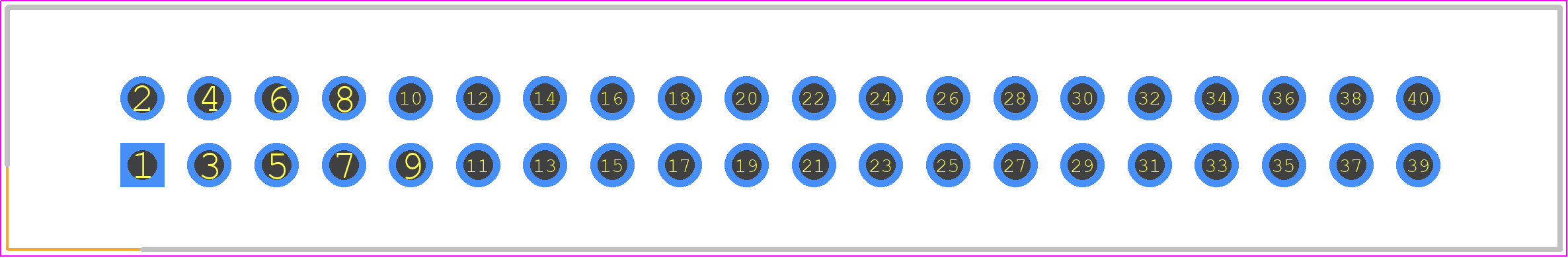

T821140A1S100CEU - Amphenol PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - T821140A1S100CEU
click to zoom
3D Models
T821140A1S100CEU - Amphenol - 3D model - Header, Shrouded - Straight PTH Box - T821140A1S100CEU
click to zoom

T821140A1S100CEU Details

  • Manufacturer Part Number:

    T821140A1S100CEU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

T821140A1S100CEU Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the terminals.
  • Yes, the T821140A1S100CEU is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
  • Yes, the T821140A1S100CEU has a IP67 rating, which means it is protected against dust and water ingress. It can be used in outdoor applications, but it's essential to ensure proper sealing and protection against environmental factors.
  • The maximum operating temperature for the T821140A1S100CEU is 125°C (257°F). It's essential to ensure that the connector is not exposed to temperatures above this value to prevent damage or degradation.
  • While the T821140A1S100CEU is designed for use with 14 AWG wire, it can accommodate wire sizes between 12 AWG and 16 AWG. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to ensure reliable connections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T821140A1S100CEU Overview

Use the download button to access the T821140A1S100CEU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T8211, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
