T90S1D12-12 - TE Connectivity

Description: General Purpose Relays SPST-NO PCB 12VDC

Download T90S1D12-12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T90S1D12-12 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

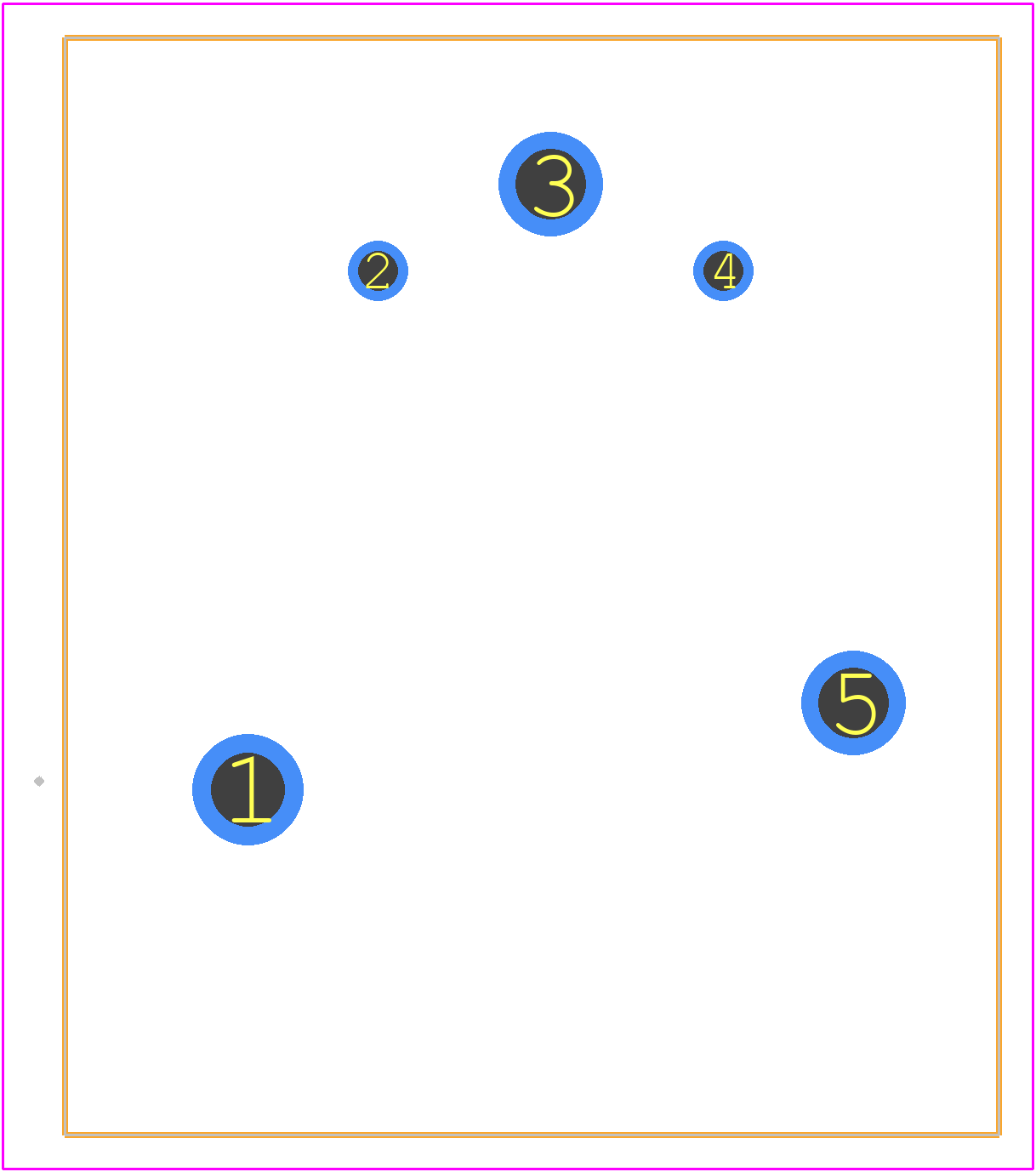

T90S1D12-12 - TE Connectivity PCB footprint - Other - Other - T90S1D12-12-1
click to zoom
3D Models
T90S1D12-12 - TE Connectivity - 3D model - Other - T90S1D12-12-1
click to zoom

T90S1D12-12 Details

  • Manufacturer Part Number:

    T90S1D12-12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    24.1 mm

  • Body Height:

    16.9 mm

  • Body Length or Diameter:

    30.5 mm

  • Coil Current(DC)-Max:

    0.078 A

  • Coil Power:

    900 mW

  • Coil Resistance:

    155 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    30 A

  • Contact Current(DC)-Max:

    30 A

  • Contact/Output Supply Type:

    AC/DC

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Physical Dimension:

    30.5mm x 24.1mm x 16.9mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    15 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
