- Part Number T90S1D12-5
- Manufacturer TE Connectivity
- Pin Count 5
- Part Category Relay or Contactor
- Package Category Other

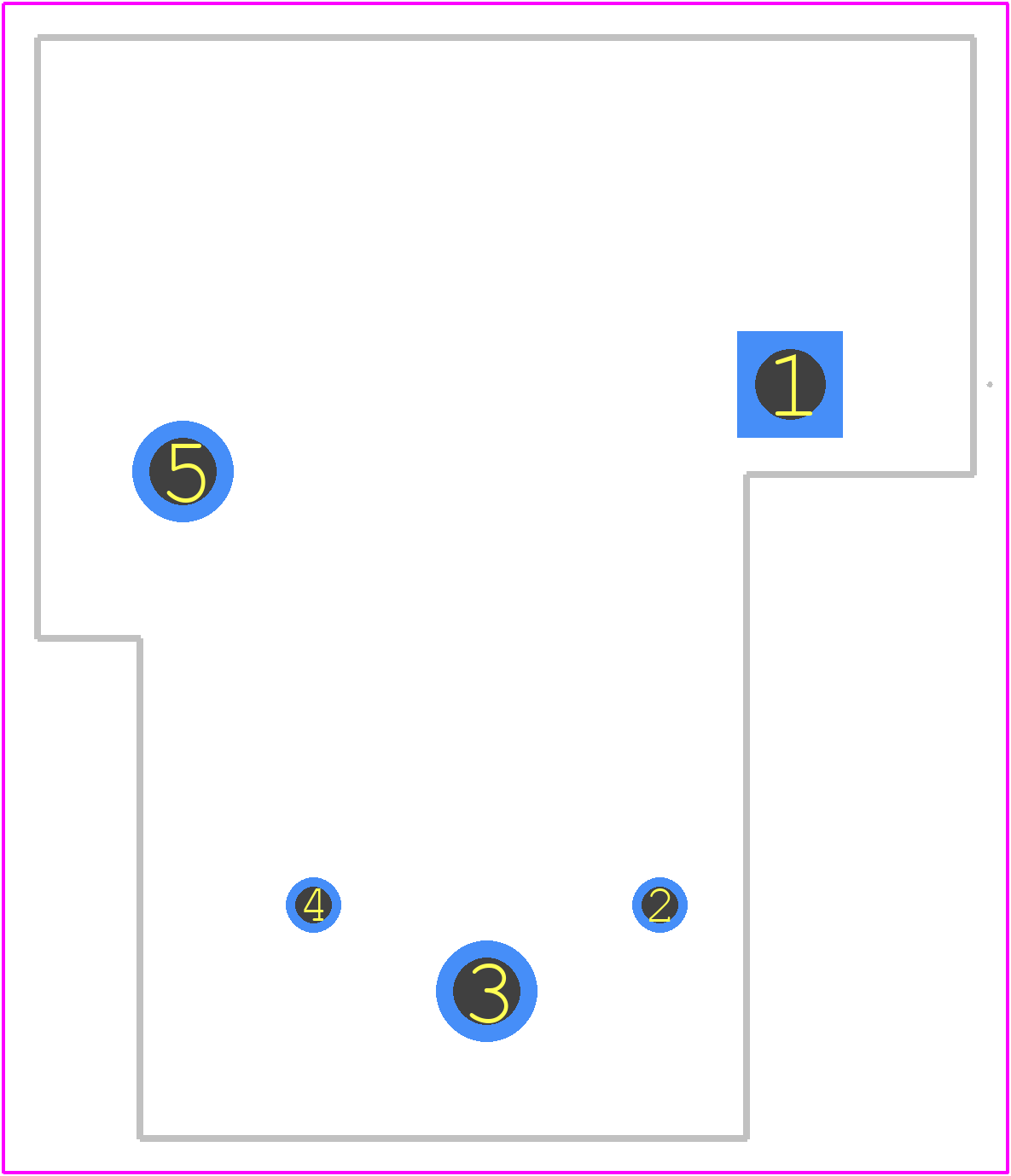

- Footprint Name Other - T90S1D12-5-3
- Released Date Oct 30, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
T90S1D12-5 Details
-
Manufacturer Part Number:
T90S1D12-5
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Body Breadth:
24.1 mm
-
Body Height:
16.9 mm
-
Body Length or Diameter:
30.5 mm
-
Coil Current(DC)-Max:
0.186 A
T90S1D12-5 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, but it's recommended to consult the TE Connectivity application notes for specific guidance.
-
Yes, the T90S1D12-5 is designed to withstand vibrations and can be used in high-vibration environments, but it's recommended to consult TE Connectivity's vibration testing data and application notes for specific guidance.
-
The maximum operating temperature for the T90S1D12-5 is 125°C, but it's recommended to consult the datasheet and application notes for specific temperature derating guidelines.
-
The T90S1D12-5 has a IP67 rating, which means it can withstand temporary immersion in water, but it's recommended to consult TE Connectivity's environmental testing data and application notes for specific guidance on using the connector in humid or wet environments.
-
The recommended wire size for the T90S1D12-5 is 24-18 AWG, but it's recommended to consult the datasheet and application notes for specific guidance on wire size and termination.
Trust Checks
Community Provided
System Verified
Community Approved
T90S1D12-5 Overview
Use the download button to access the T90S1D12-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T90S1,
or try a keyword search, such as Power/Signal Relays
