T90S5D12-12 - TE Connectivity

Description: RELAY GEN PURPOSE SPDT 20A 12V

Download T90S5D12-12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T90S5D12-12 - TE Connectivity - PCB symbol
click to zoom

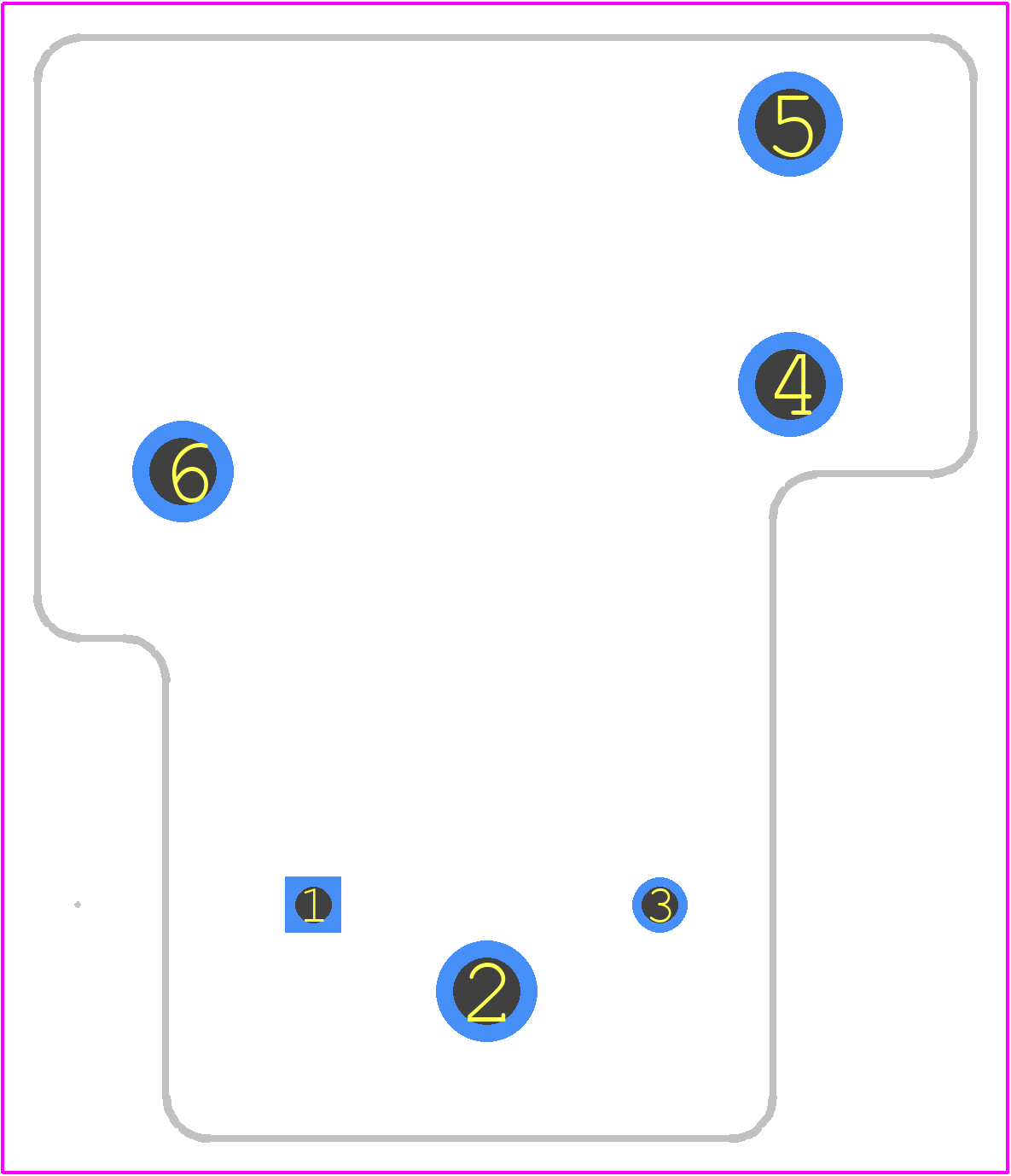

PCB Footprints
T90S5D12-12 - TE Connectivity PCB footprint - Other - Other - T90S5D12-12-6
click to zoom
3D Models
T90S5D12-12 - TE Connectivity - 3D model - Other - T90S5D12-12-6
click to zoom

T90S5D12-12 Details

  • Manufacturer Part Number:

    T90S5D12-12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    24.1 mm

  • Body Height:

    16.9 mm

  • Body Length or Diameter:

    30.5 mm

  • Coil Current(DC)-Max:

    0.078 A

  • Coil Power:

    900 mW

  • Coil Resistance:

    155 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    20 A

  • Contact Current(DC)-Max:

    20 A

  • Contact/Output Supply Type:

    AC/DC

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Physical Dimension:

    30.5mm x 24.1mm x 16.9mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    15 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

T90S5D12-12 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the T90S5D12-12 connector, as specified by TE Connectivity.
  • Yes, the T90S5D12-12 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as automotive, aerospace, and industrial control systems.
  • Yes, the T90S5D12-12 connector is designed to be compatible with other TE Connectivity products, including their range of circular connectors and cable assemblies.
  • The operating temperature range for the T90S5D12-12 connector is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • Yes, the T90S5D12-12 connector is designed to operate in harsh environments, including exposure to moisture, dust, and chemicals, making it suitable for use in industrial, automotive, and aerospace applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T90S5D12-12 Overview

Use the download button to access the T90S5D12-12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T90S5, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
