T92S7D14-12 - TE Connectivity

Description: General Purpose Power Relay, DC, Monostable, 2 Form A DPST-NO, 30 A Contact Rating, 12 VDC Coil Voltage, 277 VAC Contact Voltage, 1.7 W Coil Power

Download T92S7D14-12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

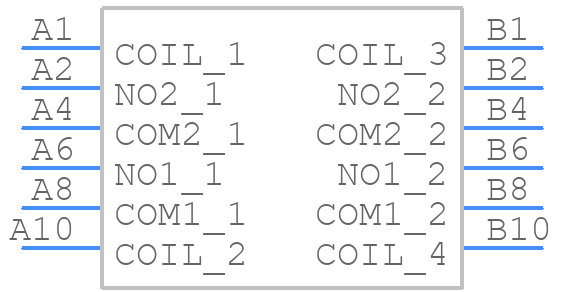

Symbol
T92S7D14-12 - TE Connectivity - PCB symbol
click to zoom

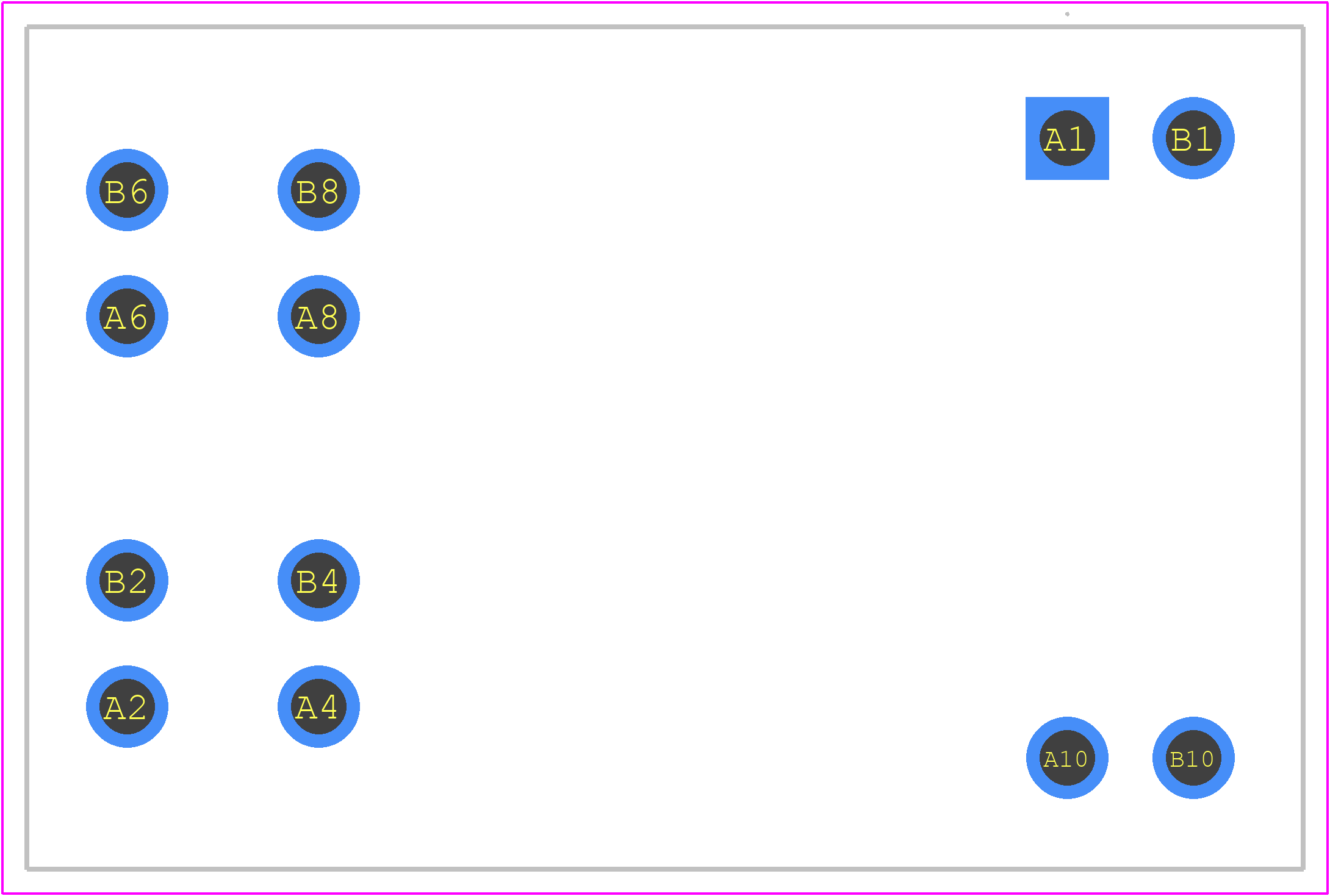

PCB Footprints
T92S7D14-12 - TE Connectivity PCB footprint - Other - Other - T92S7D14-12-4
click to zoom
3D Models
T92S7D14-12 - TE Connectivity - 3D model - Other - T92S7D14-12-4
click to zoom

T92S7D14-12 Details

  • Manufacturer Part Number:

    T92S7D14-12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.4

  • Body Breadth:

    34.54 mm

  • Body Height:

    30.73 mm

  • Body Length or Diameter:

    52.32 mm

  • Coil Current(AC)-Max:

    0.142 A

  • Coil Current(DC)-Max:

    0.142 A

  • Coil Power:

    1700 mW

  • Coil Resistance:

    86 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    30 A

  • Contact Current(DC)-Max:

    30 A

  • Contact Voltage(AC)-Max:

    600 V

  • Dielectric Strength Between Coil and Contacts:

    4000 Vrms

  • Dielectric Strength Between Open Contacts:

    1500 Vrms

  • End Contact Material:

    SILVER TIN OXIDE INDIUM OXIDE

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    BOX; TRAY

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM A

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Sealing:

    SEALED TYPE

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    86 g

T92S7D14-12 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in) for the M2.5 screws, as specified in the TE Connectivity application notes.
  • Yes, the T92S7D14-12 connector is designed to withstand vibrations up to 10g (IEC 61373 Cat. 2) and is suitable for use in high-vibration environments, such as in transportation or industrial applications.
  • The T92S7D14-12 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in high-temperature applications, such as in automotive or industrial environments.
  • The T92S7D14-12 connector has a mating cycle life of at least 500 cycles, as specified in the TE Connectivity datasheet.
  • Yes, the T92S7D14-12 connector has a salt spray resistance of 720 hours (IEC 60068-2-52) and is designed to operate in humid environments, making it suitable for use in harsh environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T92S7D14-12 Overview

Use the download button to access the T92S7D14-12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T92S7, or try a keyword search, such as Power/Signal Relays
