T9AS1D12-18 - TE Connectivity

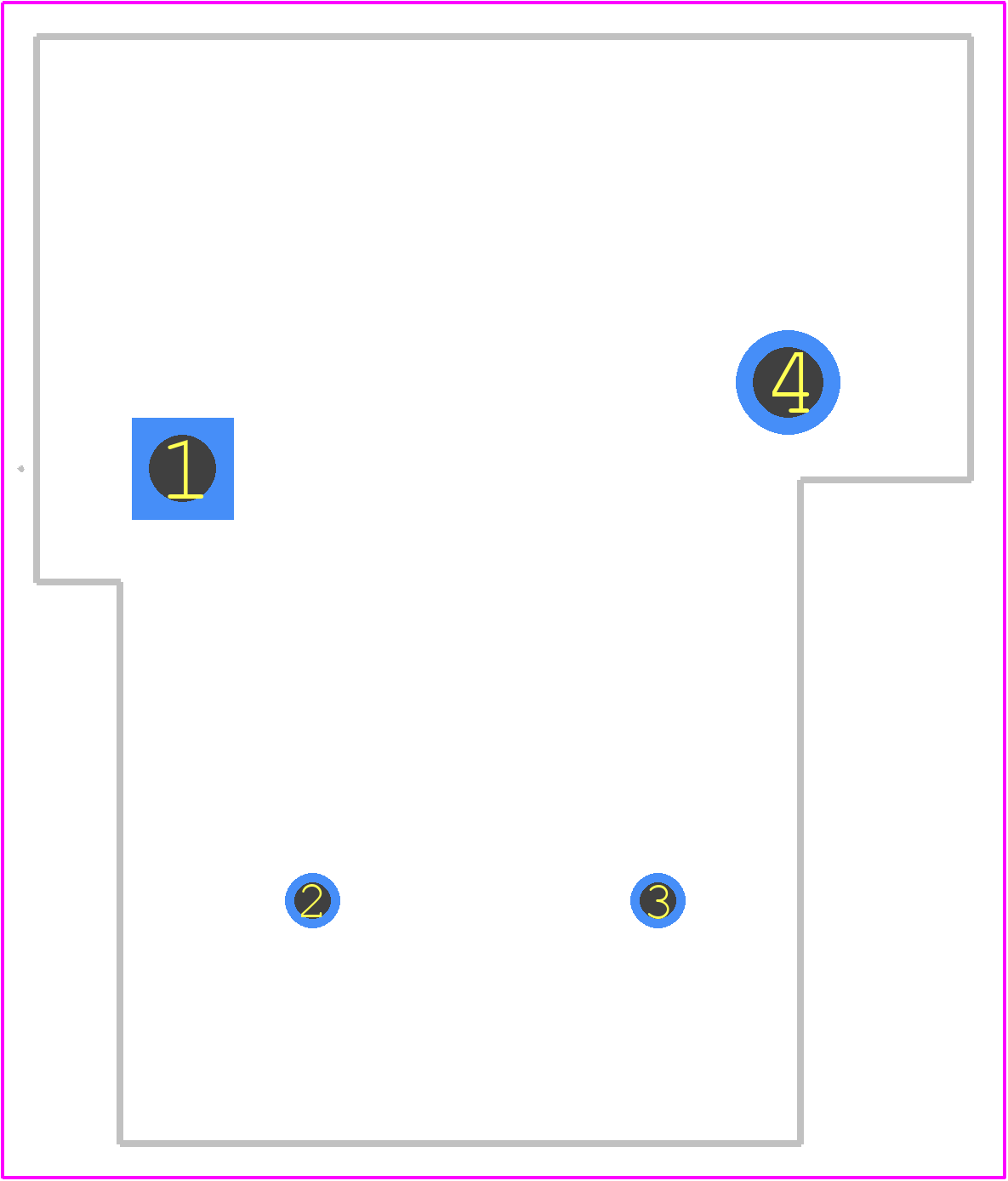

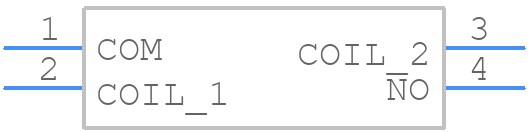

T9AS1D12-18 Details

• Manufacturer Part Number:

  T9AS1D12-18

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.50

• Factory Lead Time:

  17 Weeks, 3 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  7

• Body Breadth:

  27.4 mm

• Body Height:

  20.4 mm

• Body Length or Diameter:

  32.5 mm

• Coil Current(AC)-Max:

  0.056 A

• Coil Current(DC)-Max:

  0.056 A

• Coil Operate Voltage(DC):

  13.5 V

• Coil Power:

  1000 mW

• Coil Release Voltage(DC):

  1.8 V

• Coil Resistance:

  324 Ω

• Coil Voltage(DC)-Max:

  18 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  20A@240VAC

• Contact Current(AC)-Max:

  30 A

• Contact Current(DC)-Max:

  30 A

• Contact (DC) Max Rating R Load:

  10A@28VDC

• Contact Voltage(AC)-Max:

  277 V

• Contact Voltage(DC)-Max:

  28 V

• Contact/Output Supply Type:

  AC/DC

• Dielectric Strength Between Coil and Contacts:

  2500 Vrms

• Dielectric Strength Between Open Contacts:

  1500 Vrms

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  SILVER CADMIUM OXIDE

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  PANEL MOUNT

• Operate Time:

  15 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Packing Method:

  BOX; TRAY

• Physical Dimension:

  32.51mm x 27.43mm x 20.4mm

• Reference Standard:

  CSA; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM A

• Relay Function:

  SPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  15 ms

• Sealing:

  SEALED TYPE

• Surface Mount:

  NO

• Termination Type:

  SOLDER/QUICK CONNECT

• Weight:

  26 g
