The recommended PCB layout involves placing the device on a 4-layer board with a solid ground plane, using thermal vias to dissipate heat, and keeping the input and output traces separate. A heat sink or thermal pad can be added to improve thermal management.
To ensure proper biasing, follow the recommended voltage and current settings in the datasheet. Additionally, use a voltage regulator to maintain a stable supply voltage, and consider using a bias tee or a resistive divider network to set the desired bias point.
Operating the device beyond the recommended frequency range may result in reduced gain, increased noise, and potential instability. It's essential to ensure the device is operated within the specified frequency range to maintain optimal performance and prevent damage.
To troubleshoot oscillation or instability, check the PCB layout for any signs of resonance or coupling, ensure the device is properly biased, and verify that the input and output impedances are matched. Additionally, use a spectrum analyzer to identify any unwanted frequency components.
Store the device in a dry, cool environment (less than 30°C and 60% RH) away from direct sunlight and moisture. Avoid exposing the device to mechanical stress, vibration, or extreme temperatures during operation or storage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TA0395A Overview

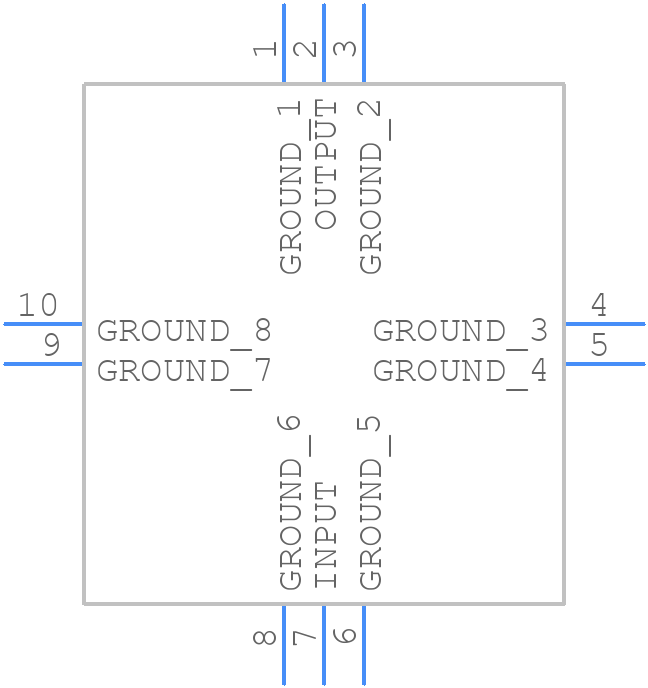

Use the download button to access the TA0395A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TA039,
or try a keyword search, such as SAW Filters
