TA0692A footprint, schematic symbol and 3D model by TAI-SAW Technology

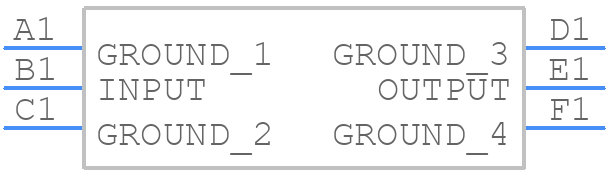

Symbol

PCB Footprints

3D Models

TA0692A Details

The manufacturer recommends a 4-layer PCB with a dedicated ground plane, and a 50-ohm microstrip transmission line for the RF signal. A reference design is available upon request.
Use a reflow oven with a peak temperature of 260°C (500°F) and a dwell time of 20-30 seconds. Hand soldering is not recommended due to the component's small size and thermal sensitivity.
Use a combination of 10uF and 100nF capacitors in close proximity to the device, with a 0.1uF capacitor connected between the VCC and GND pins.
Check the PCB layout for any signal integrity issues, ensure proper power supply decoupling, and verify the device is operated within the recommended operating conditions. Consult the application note for detailed troubleshooting procedures.
Yes, the device is RoHS-compliant and compatible with lead-free soldering processes.

Community Provided

System Verified

Community Approved

Use the download button to access the TA0692A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TA069, or try a keyword search, such as SAW Filters
