The recommended PCB layout involves keeping the input and output traces separate, using a solid ground plane, and placing the device near a heat sink or thermal pad. A thermal management strategy should include a heat sink or thermal pad, and ensuring good airflow around the device.
To ensure proper biasing, follow the recommended voltage and current ratings, and use a stable voltage source. Additionally, ensure the input and output capacitors are properly selected and placed close to the device.
Operating the device beyond the recommended temperature range can lead to reduced performance, increased power consumption, and potentially even device failure. It's essential to ensure the device operates within the specified temperature range to maintain reliability and performance.
To troubleshoot oscillation or instability, check the PCB layout, ensure proper decoupling, and verify the input and output impedance matching. Also, check for any signs of overheating, and ensure the device is properly biased and operated within the recommended specifications.
The TA0724A is a sensitive device and requires proper ESD protection during handling and assembly. Use anti-static wrist straps, mats, and packaging materials, and follow proper handling procedures to prevent damage from electrostatic discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TA0724A Overview

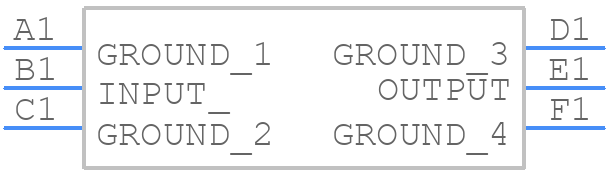

Use the download button to access the TA0724A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TA072,
or try a keyword search, such as SAW Filters
