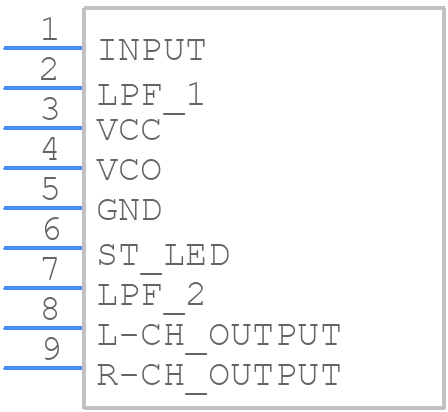

TA7343AP - Toshiba

TA7343AP Details

• Manufacturer Part Number:

  TA7343AP

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SIP

• Package Description:

  2.54 MM PITCH, PLASTIC, SIP-9

• Pin Count:

  9

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0

• Consumer IC Type:

  CONSUMER CIRCUIT

• JESD-30 Code:

  R-PSIP-T9

• JESD-609 Code:

  e0

• Length:

  22.28 mm

• Number of Functions:

  1

• Number of Terminals:

  9

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -30 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  7.9 mm

• Supply Current-Max:

  18 mA

• Supply Voltage-Max (Vsup):

  12 V

• Supply Voltage-Min (Vsup):

  3.5 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  SINGLE

• Width:

  3.2 mm
