TA8184P - Toshiba

TA8184P Details

• Manufacturer Part Number:

  TA8184P

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

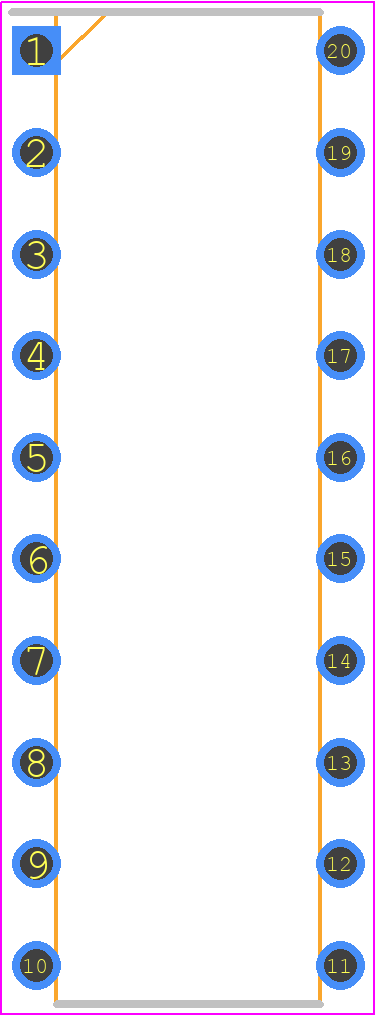

  0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-20

• Pin Count:

  20

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0

• Consumer IC Type:

  TONE CONTROL CIRCUIT

• JESD-30 Code:

  R-PDIP-T20

• JESD-609 Code:

  e0

• Length:

  24.6 mm

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  20

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.45 mm

• Supply Voltage-Max (Vsup):

  15 V

• Supply Voltage-Min (Vsup):

  7.5 V

• Surface Mount:

  NO

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  7.62 mm
