TAC5212IRGER - Texas Instruments

Description: Mono Audio Interface 16 b, 20 b, 24 b, 32 b DSP, I2C, I2S, PCM, SPI 24-VQFN (4x4)

Download TAC5212IRGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

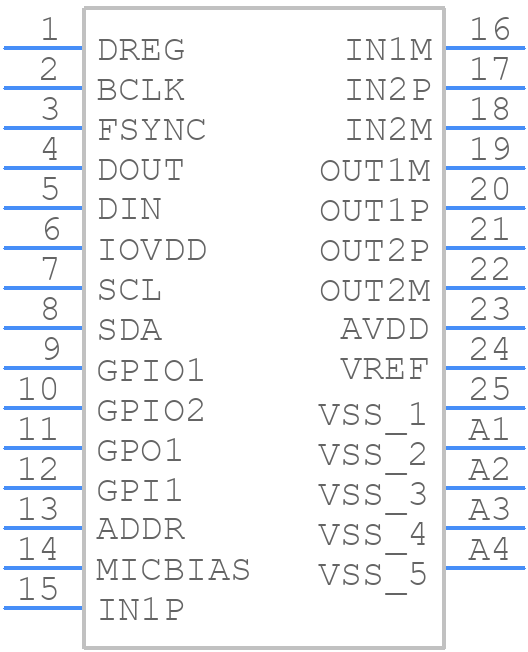

TAC5212IRGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAC5212IRGER - Texas Instruments PCB footprint - Other - Other - RGE0024R-2025
click to zoom
3D Models
TAC5212IRGER - Texas Instruments - 3D model - Other - RGE0024R-2025
click to zoom

TAC5212IRGER Details

  • Manufacturer Part Number:

    TAC5212IRGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input-Max:

    5.6 V

  • Filter:

    YES

  • Input Type:

    SINGLE-ENDED,DIFF

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    PROGRAMMABLE CODEC

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

TAC5212IRGER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TAC5212IRGER Evaluation Module User's Guide (SLUUAC5). It's essential to follow this guide to ensure optimal performance and minimize noise and interference.
  • The output capacitor value depends on the specific application and desired output ripple. A general guideline is to use a capacitor with a value between 10uF to 47uF, with a voltage rating of at least 2x the output voltage. Consult the datasheet and application notes for more specific guidance.
  • The TAC5212IRGER has an absolute maximum input voltage rating of 6V. Exceeding this voltage can cause damage to the device. Ensure that the input voltage is within the recommended operating range of 2.7V to 5.5V.
  • The TAC5212IRGER has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output pin and ground. The device will limit the output current to a maximum of 2A when the voltage across Rs exceeds 0.2V. Consult the datasheet for more details on the calculation of Rs.
  • The thermal derating curve for the TAC5212IRGER is provided in the datasheet (Figure 12). It shows the maximum output current vs. ambient temperature. Ensure that the device operates within the specified temperature range to maintain optimal performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAC5212IRGER Overview

Use the download button to access the TAC5212IRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAC52, or try a keyword search, such as Codecs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
