TAD4140-BAAA - TDK

Description: TMR Angle Sensors, Digital Output 2xSPI/PWM, Redundancy=Yes

Download TAD4140-BAAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

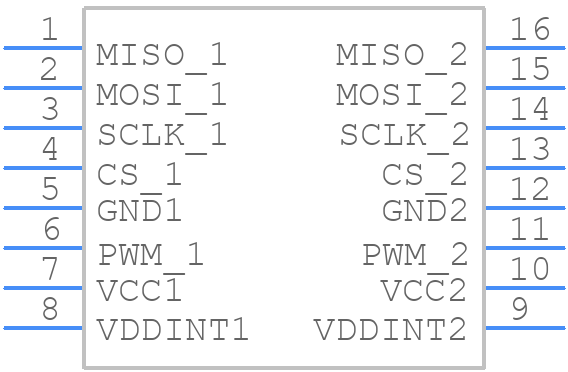

TAD4140-BAAA - TDK - PCB symbol
click to zoom
PCB Footprints
TAD4140-BAAA - TDK PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-16-3
click to zoom
3D Models
TAD4140-BAAA - TDK - 3D model - Small Outline Packages - TSSOP-16-3
click to zoom

TAD4140-BAAA Details

  • Manufacturer Part Number:

    TAD4140-BAAA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    TDK Corporation

  • Additional Feature:

    IT ALSO REQUIRES 5V NOMINAL SUPPLY VOLTAGE

  • Body Breadth:

    4.4 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    -0.5-0.5V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    ANGLE SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.1 V

  • Surface Mount:

    YES

TAD4140-BAAA Frequently Asked Questions (FAQs)

  • TDK recommends a 4-layer PCB with a solid ground plane and a separate power plane for the TAD4140-BAAA. The component should be placed near the power source, and the input and output capacitors should be placed as close as possible to the device.
  • Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate in high-temperature environments. Also, ensure that the device is not exposed to extreme temperatures during storage or transportation.
  • TDK recommends using a 10uF to 22uF ceramic capacitor with an X7R or X5R dielectric, rated for at least 10V, as the input capacitor. The capacitor should be placed as close as possible to the VIN pin of the device.
  • Yes, the TAD4140-BAAA is designed to withstand vibrations up to 10G. However, it's recommended to follow proper mounting and soldering techniques to ensure the device is securely attached to the PCB.
  • Start by checking the input voltage and current, and ensure that the device is properly soldered to the PCB. Check for any signs of overheating, and verify that the output voltage is within the specified range. If issues persist, consult the TDK application note or contact TDK support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAD4140-BAAA Overview

Use the download button to access the TAD4140-BAAA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAD41, or try a keyword search, such as Other Sensors/Transducers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
