TAJC336K020HNJ - Kyocera AVX

Description: Tantalum Capacitors - Solid SMD 20V 33uF 10%

Download TAJC336K020HNJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TAJC336K020HNJ - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

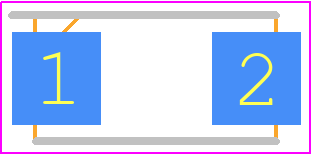

TAJC336K020HNJ - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - CASE C
click to zoom
3D Models
TAJC336K020HNJ - Kyocera AVX - 3D model - Capacitor Moulded Polarised - CASE C
click to zoom

TAJC336K020HNJ Details

  • Manufacturer Part Number:

    TAJC336K020HNJ

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    , 2312

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    5

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    33 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    1500 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e0

  • Leakage Current:

    0.0066 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    20 V

  • Ripple Current:

    108 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TAJC336K020HNJ Frequently Asked Questions (FAQs)

  • The recommended land pattern for TAJC336K020HNJ can be found in the Kyocera AVX Components' recommended land pattern document, which is typically available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • While the datasheet provides information on the operating temperature range, engineers may want to know more about the component's performance in extreme temperatures. According to Kyocera AVX Components, the TAJC336K020HNJ is designed to operate reliably up to 125°C, but its performance may degrade above 100°C. It's recommended to consult with their application engineers for specific guidance on high-temperature applications.
  • Yes, the TAJC336K020HNJ is compatible with lead-free soldering processes. Kyocera AVX Components ensures that their components meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, which includes the use of lead-free materials. However, it's essential to follow the recommended soldering profile and guidelines to ensure reliable assembly and performance.
  • The ESL of the TAJC336K020HNJ is not explicitly stated in the datasheet, but according to Kyocera AVX Components, the typical ESL is around 1.5-2.5nH. This value can be important for high-frequency applications, and engineers should consult with their application engineers for more detailed information and guidance.
  • While the TAJC336K020HNJ is a general-purpose capacitor, it may not meet the specific requirements of automotive applications. Kyocera AVX Components offers a range of automotive-grade capacitors that meet the AEC-Q200 standard. Engineers should consult with their application engineers to determine the suitability of the TAJC336K020HNJ or recommend an alternative automotive-grade capacitor.

Trust Checks

This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAJC336K020HNJ Overview

Use the download button to access the TAJC336K020HNJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAJC3, or try a keyword search, such as Tantalum Capacitors
